PDF PILLA CATALOG

NEW PRODUCTS:

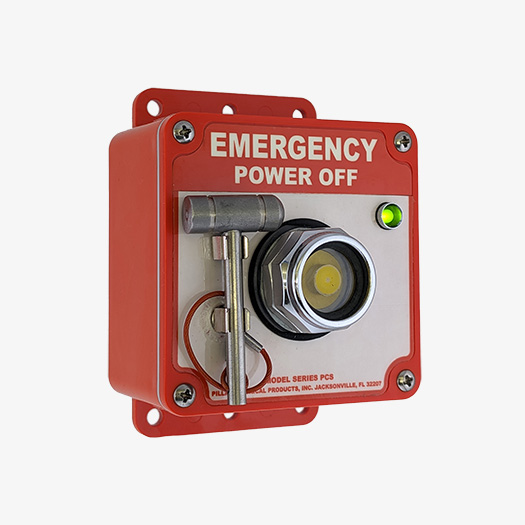

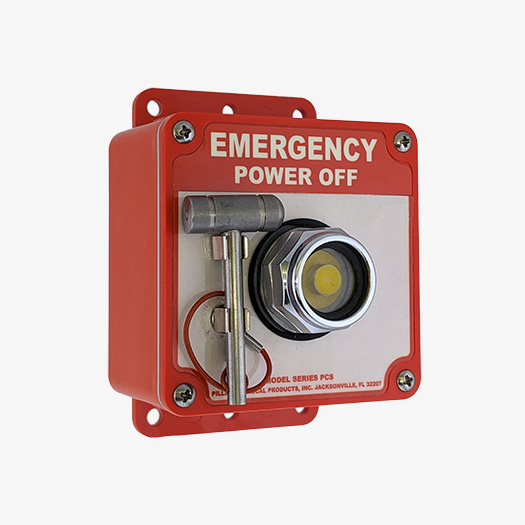

ST120SN4XBR ST120SN4XBRv

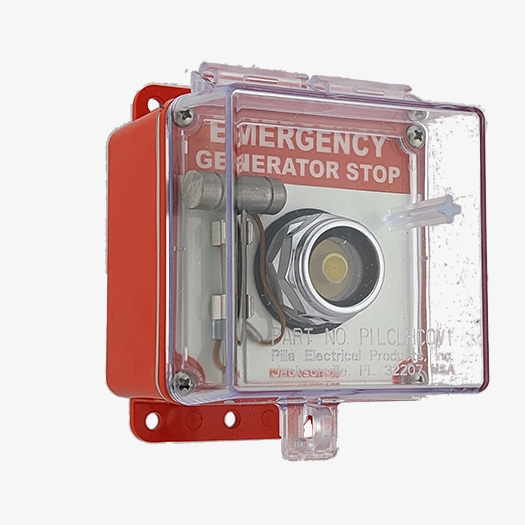

ST120SN4XBRCOV1 ST120SN4XBRCOVA

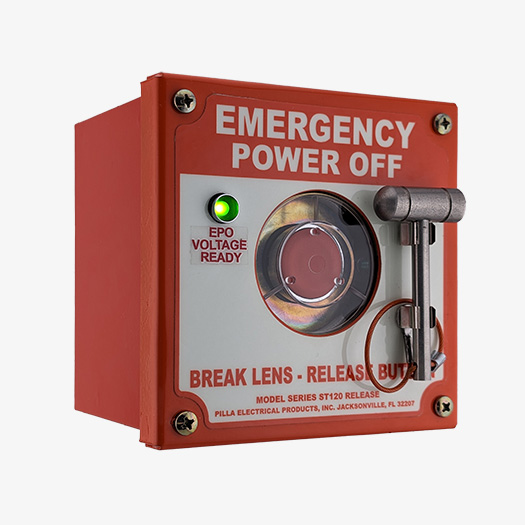

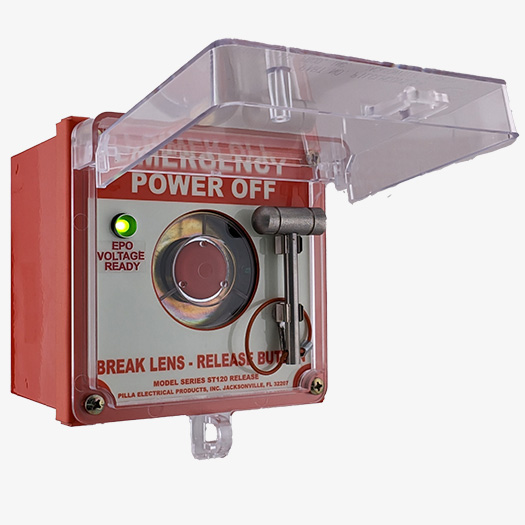

ST120SN1SLv ST120SN1COV5SLv

Operator is held in a depressed position by a glass disk. When the glass disk is broken with the hammer, the button returns to a normal extended position

NEW PRODUCTS:

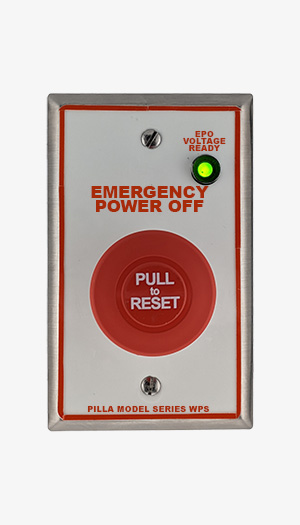

WPSMPv

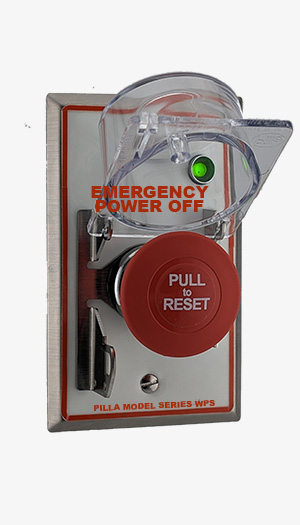

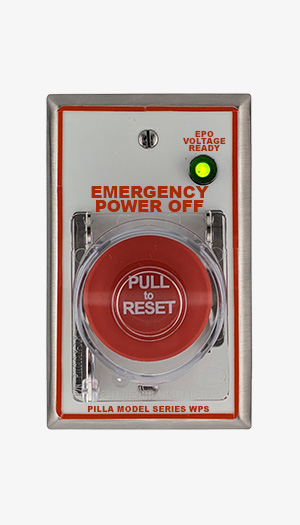

WPSMPCLMv

WPS Wall Plate Station with EPO Voltage Ready Indicator, also shown with CLM lockable cover option

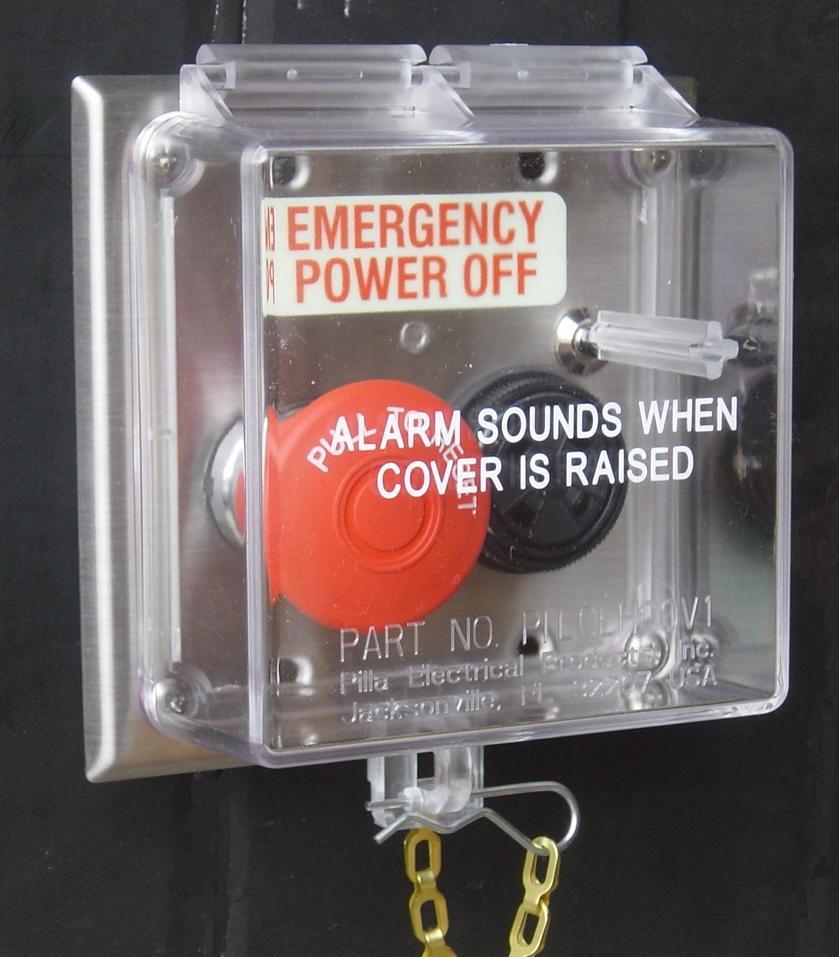

	NEW PRODUCTS: WPS2G with alarm & PILCLHCOVA alarm cover

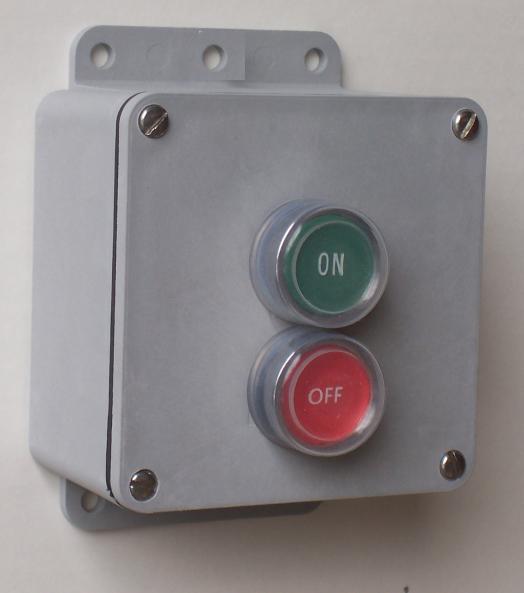

	MST1OO Momentary Nema4X-nonmetallic(standard)

MODEL SERIES

PIL ACCESSORIES: See preceeding page

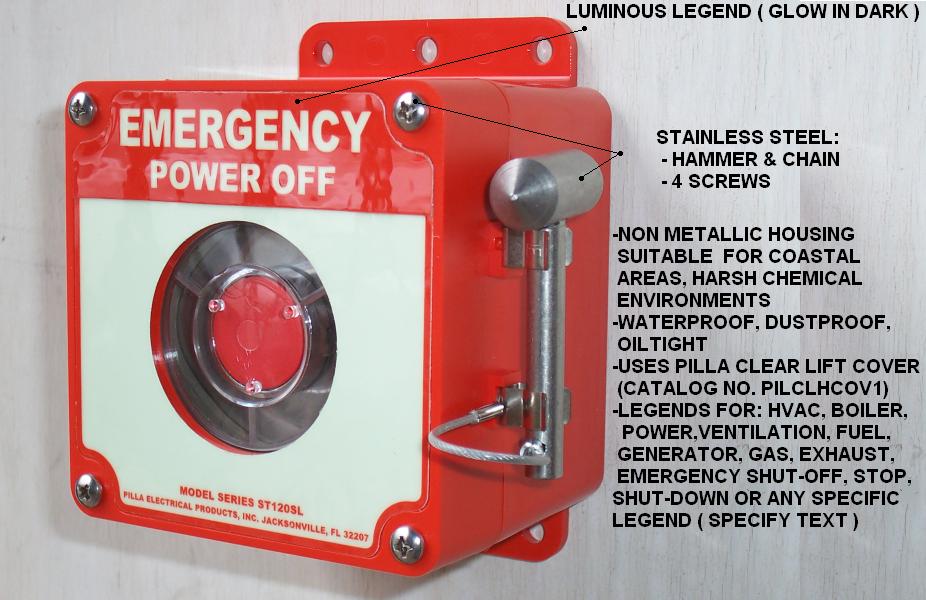

ST120SN4XNM: Break Lens Nema4X nonmetallic NEW

ST120: Break Glass - Push Button Stns

ST120: Break Glass-Push Btn Stns w suffix SL

ST120: Break Glass Stations

ST120: Break Glass Stations w/suffix SL

ST120PB: Push Button Stations

ST120SL: Specific legend Push Button Stns

FS120: Fuel Shut-Off Push Button Stations

GS120: Generator Stop Push Button Stations

HVAC120: HVAC Push Button Stations

ST120ES: Emergency Stop Push Button Stns

ST120ESO: Emergency Shut-Off Push Button Stns

BSD120: Boiler Shut-Down Push Button Stns

WPS: Single Gang Wall Box Device

WPS2G: Two Gang Wall Box Device

HL600: Hazardous Location Control Stations

PCS: Key Selector Swich Control Stations

MST: Power Control Stations NEW

ST120SN4XBR: Break Glass Nema4X nonmetallicNEW

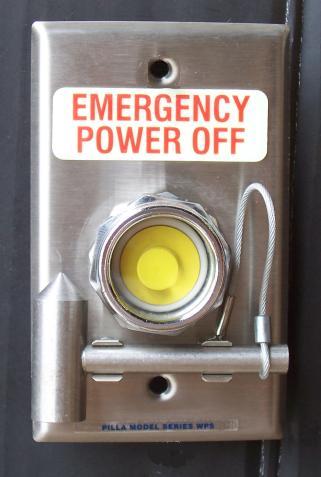

	NEW PRODUCTS: WPSBR Break Glass Wallplate Station
	ST120SN4XNM Break Lens Nema4X-nonmetallic

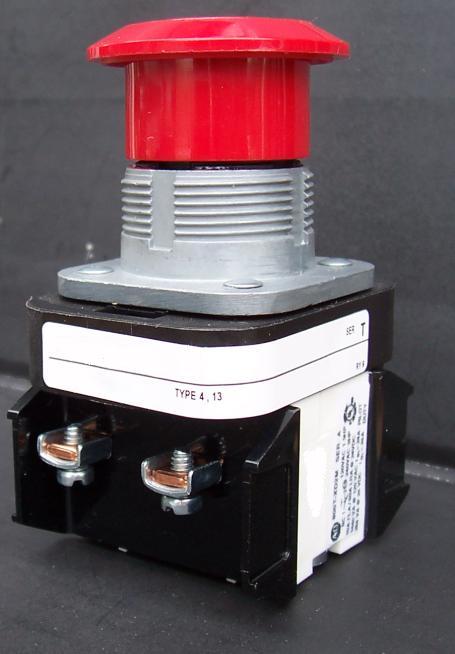

MAXDUTY
CONTACT
BLOCKS
ADD
SUFFIX
MDY

NEW PRODUCTS:

NEW OPTIONAL HORSEPOWER RATED
CONTACTS & DEVICES AVAILABLE ON ALL MODEL SERIES PUSH BUTTON AND BREAK GLASS STATIONS- CARRY 24-Amp CONTINUOUS CURRENT
(I=24 V)
SWITCH
12Amp @120V AC,
10Amp @24V DC
(pilot duty - inductive Loads)
START/STOP MOTORS:
1.5 Hp @ 120V AC
3 HP @ 240V AC
10 A FLA/60 A LRA @ 24V DC
TERMINALS ACCEPT UP TO 10 AWG WIRES

MAXDUTY
CONTACT
BLOCKS
ADD
SUFFIX
MDY

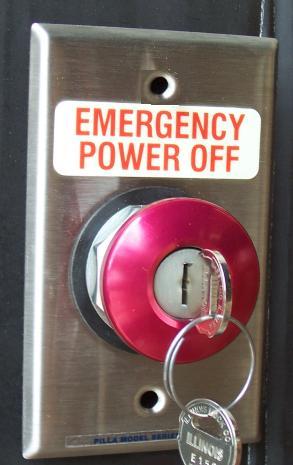

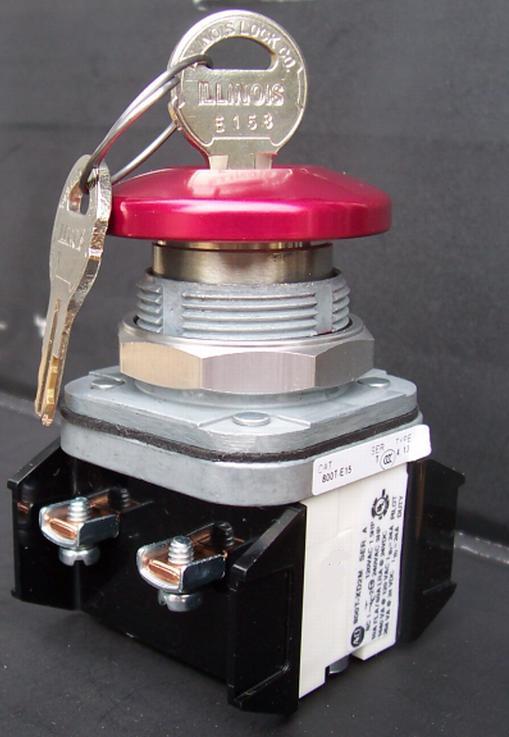

	NEW PRODUCTS: WPSKRMDY Wallplate Station

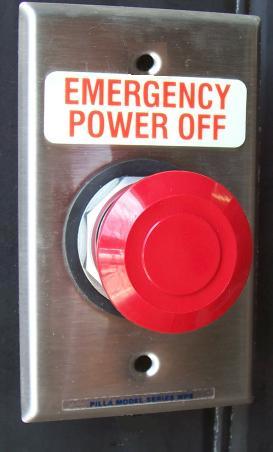

	WPSMPMDY Wallplate Station
