ST120SN4XBR
EMERGENCY DISCONNECT
OPERATOR STATION
BREAK LENS TO RELEASE BUTTON
PILLA MODEL SERIES ST120

ST120SN4XBR

For product drawings, click on individual model number desired




See Series PIL accessories preceeding page.

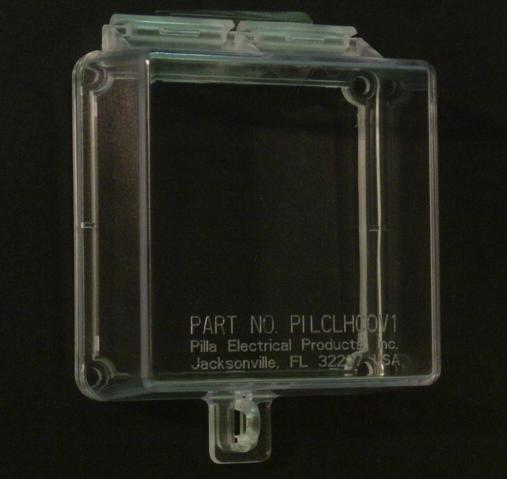

CLEAR PROTECTIVE COVER PILCLHCOV1


ST120SN4XBR

To print PICTURES, click here: ST120SN4XBR -PDF FILE
To print DRAW click here: ST120SN4XBR-PDF FILE

Description
SURFACE MOUNT
NEMA 4X
NONMETALLIC
SEE SUFFIX HB BELOW
1-3 CONTACI BLOCK CAPACITY



OPTIONS
AVAILABLE


TO ORDER:The above standard models may include optional features listed below.Add the indicated suffix(s) for the optional feature(s) desired to the standard model number chosen from above.

ADD SUFFIX BP2
"Break Lens-Push Button" model, maintained (push on/push off) operator behind lens
ADD SUFFIX IL
Iluminated operator model with 24-120V AC/DC red LED (standard-specify other voltage ) (Note1)
ADD SUFFIX SL

Specific legend ( specify when ordering )

NOTE:

Contact blocks supplied separately: specify accesories PILNOCB and/or PILNCCB. See Series PIL Accessories below.For electrical ratings,
see CONTACT BLOCK CHARACTERISTICS at Note 3 page 18. NOTE THAT CONTACT BLOCK CAPACITIES SHOWN ABOVE ARE 50% GREATER
THAN OLD CAPACITIES INDICATED IN BULLETIN 120.2.

*NOTE 1:

For optional incandescant or neon lamp: Add addendum IC or NE to suffix IL (120V standard-specify other). Suffix IL illumination option
available on standard and suffix BP1/P1/P3 models but not available on suffix BP2/TG models.
*NOTE 2:

For operation other than (standard) maintained in all positions on suffix P1/P3 models, specify when ordering. See Series PIL
Accessories (below) for descriptions of two/three position selector and two/three position keyed selector switches available.
Keyed selector switches include two keys.

FEATURES

  • Non Metallic housing suitable in coastal areas

  • Harsh chemical environments

  • Waterproof

  • Dustproof

  • Oiltight

  • Uses Pilla lift cover ( Part No.PILCLHCOV1)

  • Legends for HVAC, Boiler, Ventilation, Fuel, Gas, Exhaust or any customer main legend

  • Type PILKBR contacts blocks are Finhersafe contact blocks. They have one screw mounting and captive (backed-break) plus/minus terminal screws. These contact blocks are double-break, direct-acting contacts. Because of the wiping action of these contacts, they are suitable for use with programmable controllers, All contact blocks listed below accept up to 2 # 12 # 24 AWG solid or stranded wires.

  • Operator is held in a depressed position by a glass disc. When the glass disc is broken with hammer, button returns to a normal extended position.

  • Contact blocks rated 10 AMP continuous up to 600 Volts*

  • Accepts up 2 PILKBR

  • Standard models: Type PILKBR contacts remain open/closed with a glass disc intact--close/open when a glass disc is broken

  • One extra replacement lens included with each ST120 (also See PILENS@ Series PIL accessories preceeding page

  • SPECIFIC LEGENDS AVAILABLE IN ANY LANGUAGE: Add model suffix SL (specify text)

  • *NOTE: Contact block (s) supplied separately. See Series PIL accessories preceeding page.
