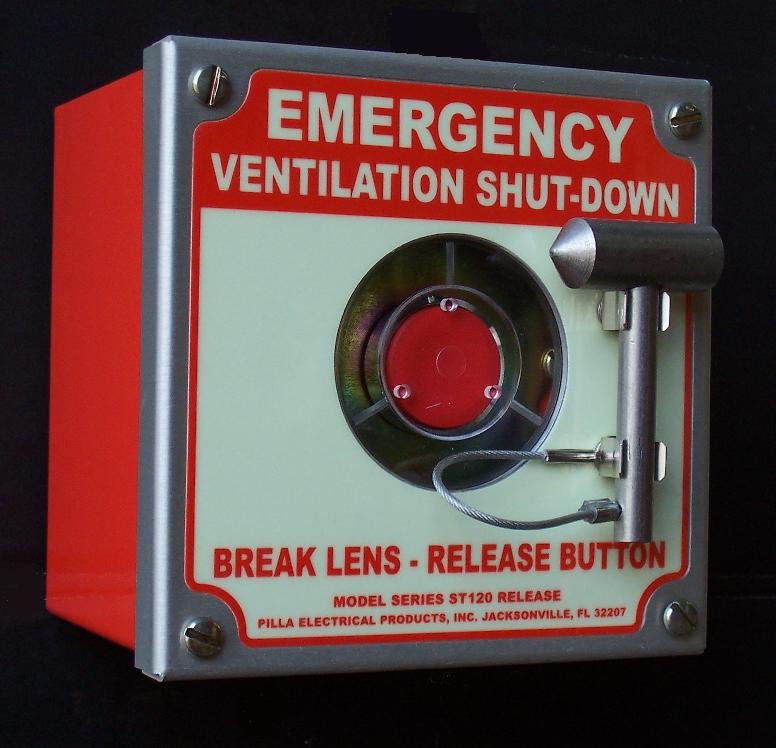

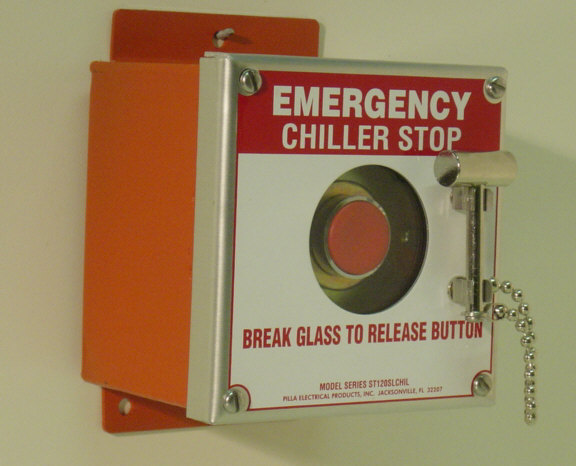

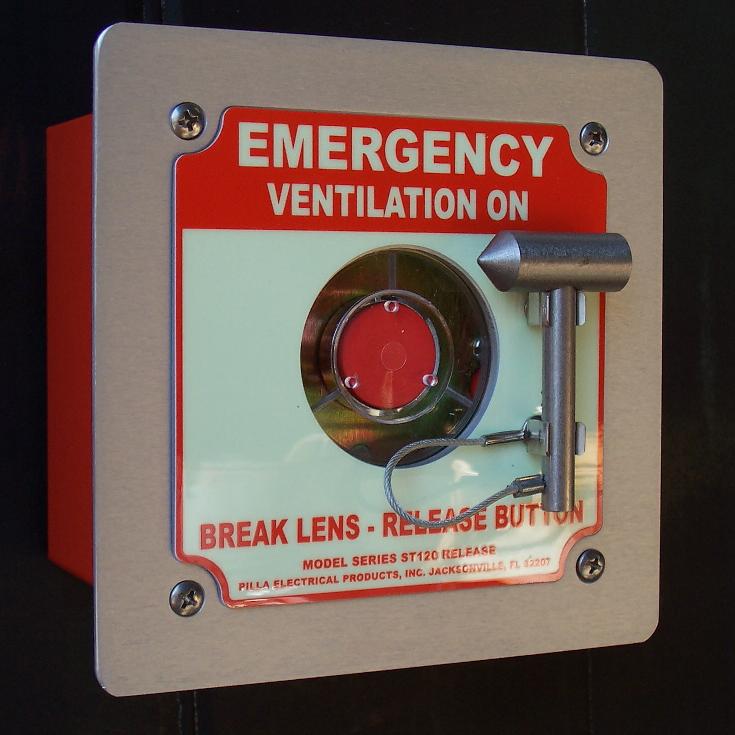

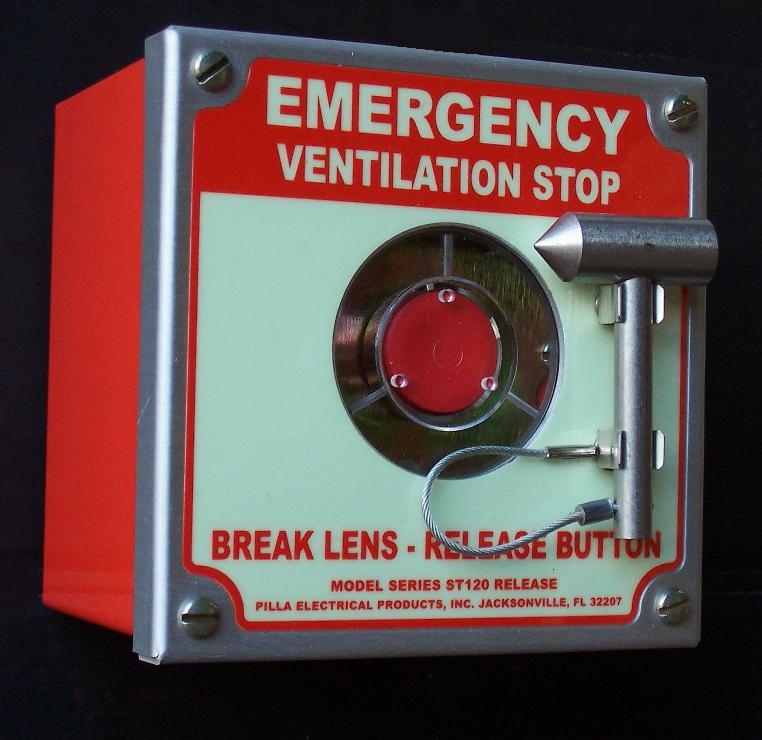

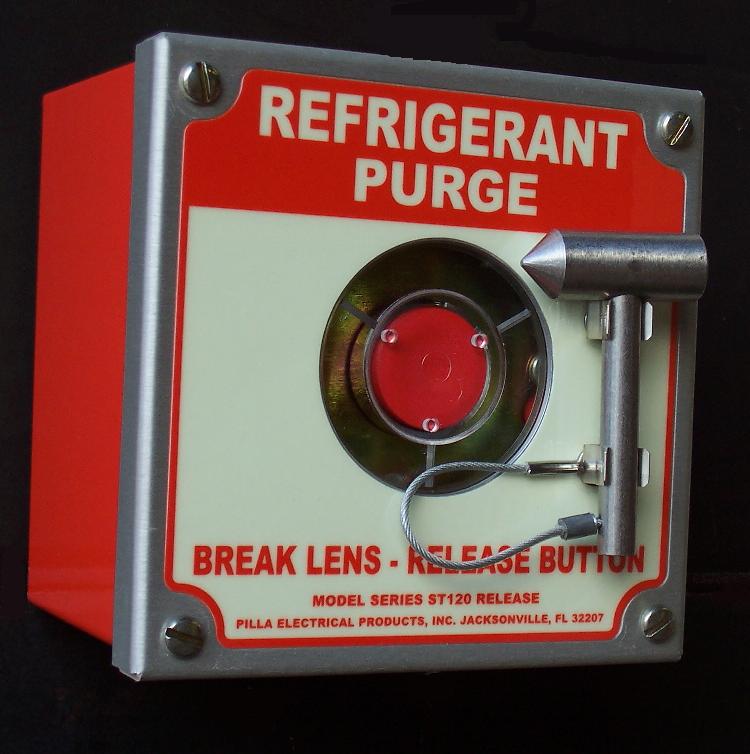

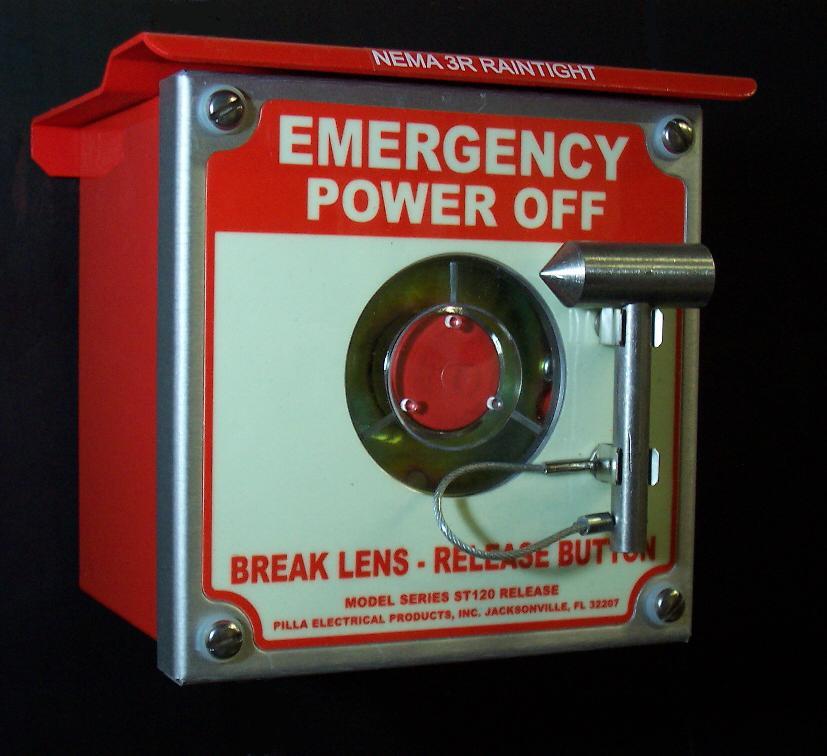

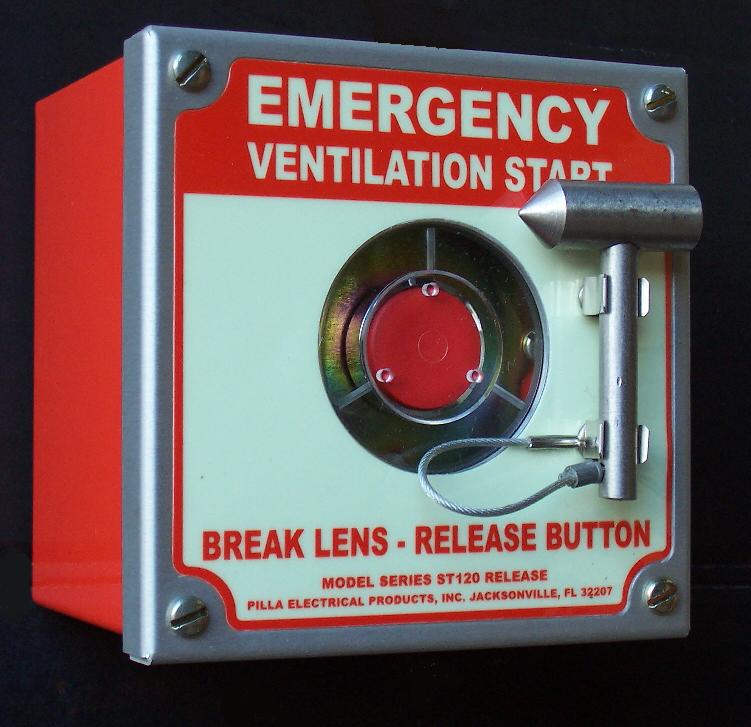

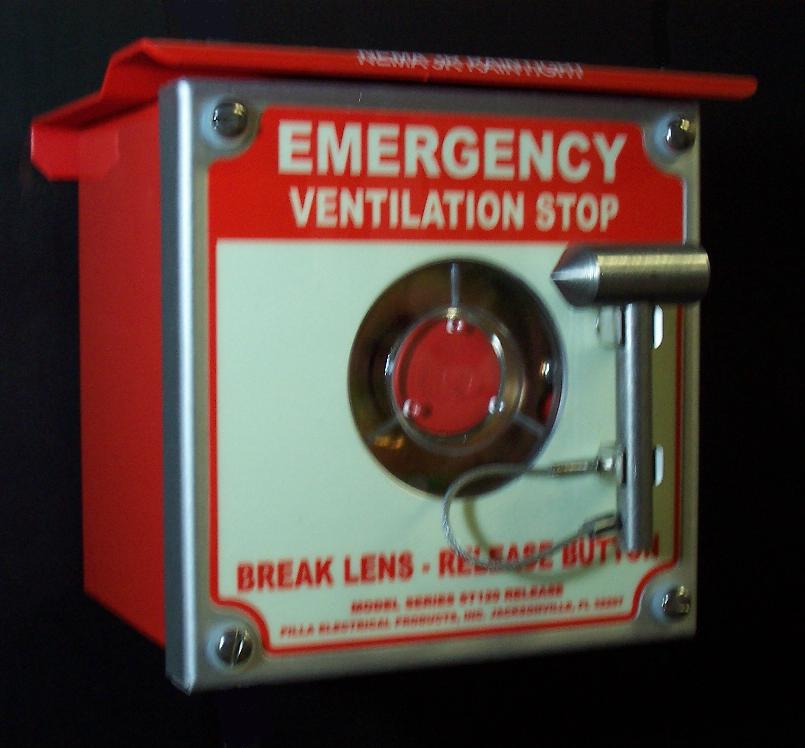

Operator automatically
releases when glass is broken (standard-Suffix BP1 / BP2 models require
button to be manually depressed)
-
Optional suffix TG
/ P3 / P3 / K1/K4 models are labeled: "Break Glass-Operate Switch"
-
Contact blocks rated
10 AMP continuous up to 600 Volts*
-
Accepts up to four
contact blocks in 3.5 inch depth backbox
-
Extra depth model
accepts up to eight contacts blocks: Add model suffix XD
-

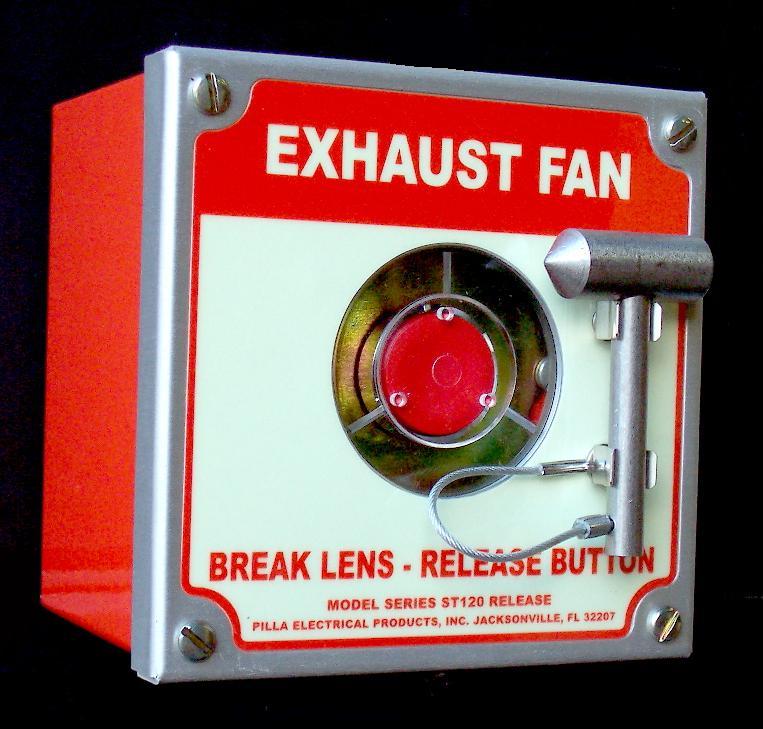

Compact 4.5 x 4.5
inch metal backbox has red enamel finish with 1/2-3/4" inch knockout provided
bothom and back
-
Standard models: Type
PILNCCB / PILNOCB contacts remain open/closed with glass intact--close/open
when glass is broken
-
Suffix BP1/BP2/TG/P1/P3/K1/K4
models: Type PILNCCB / PILNOCB contacts remain closed/open with glass intact--open/close
when glass is broken and device manually actuted
-
Illuminated model
includes 120V lamp standard (specify other voltage): Add model suffix IL
-
Double strength glass standard - single strength glass available upon request (surcharge applies)
-
One extra
replacement lens included with each ST120 (also See PILENS@ Series PIL accessories
preceeding page
-

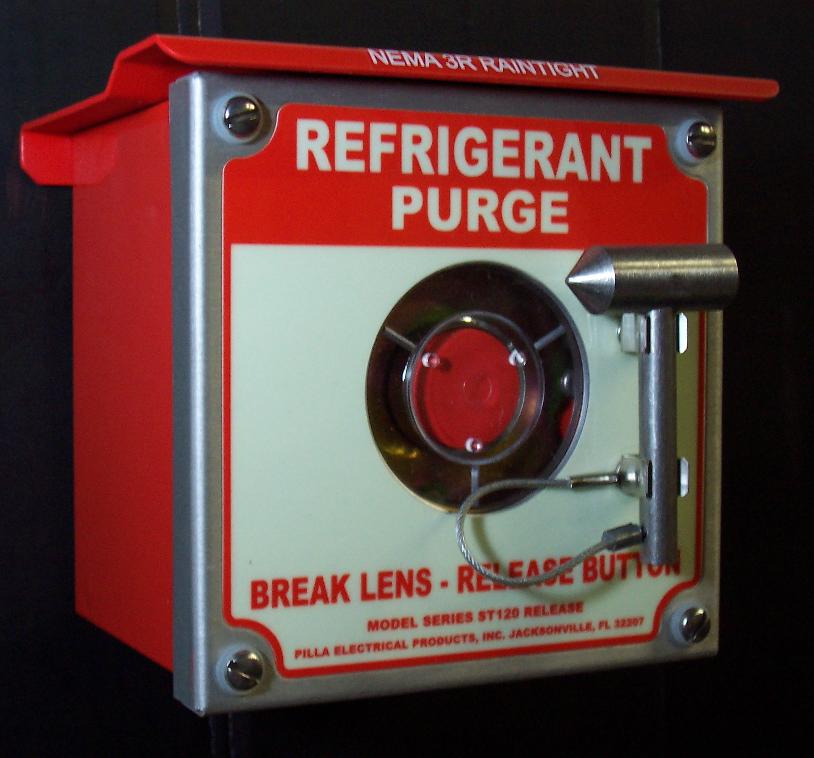

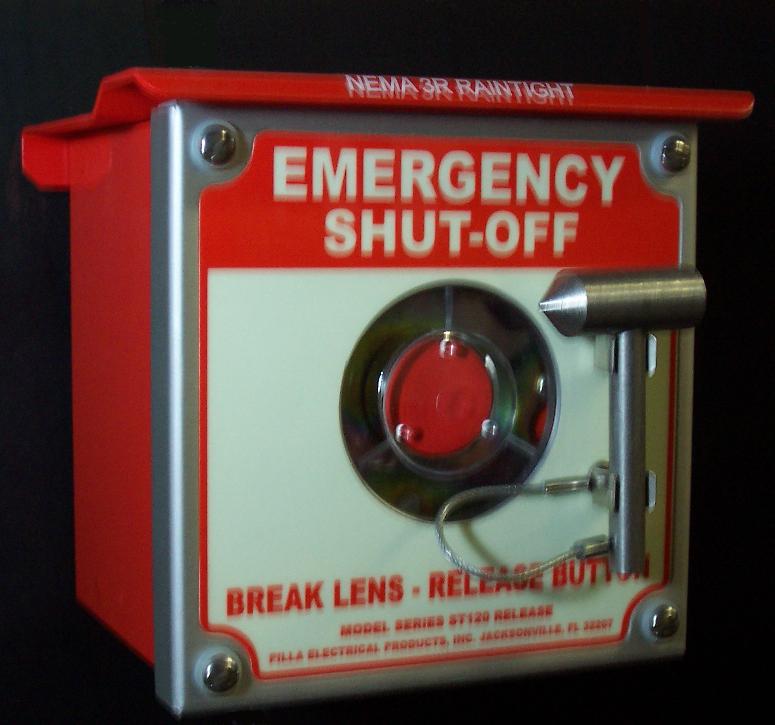

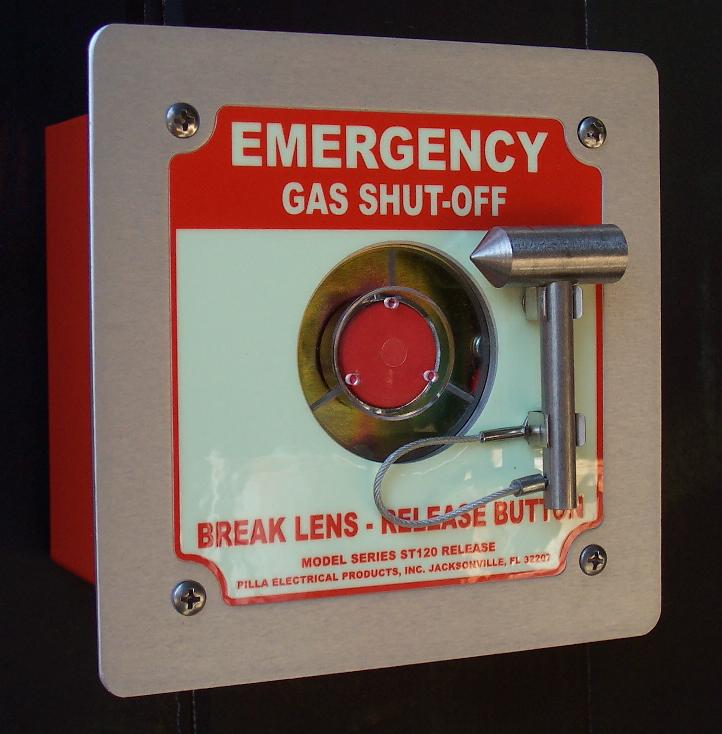

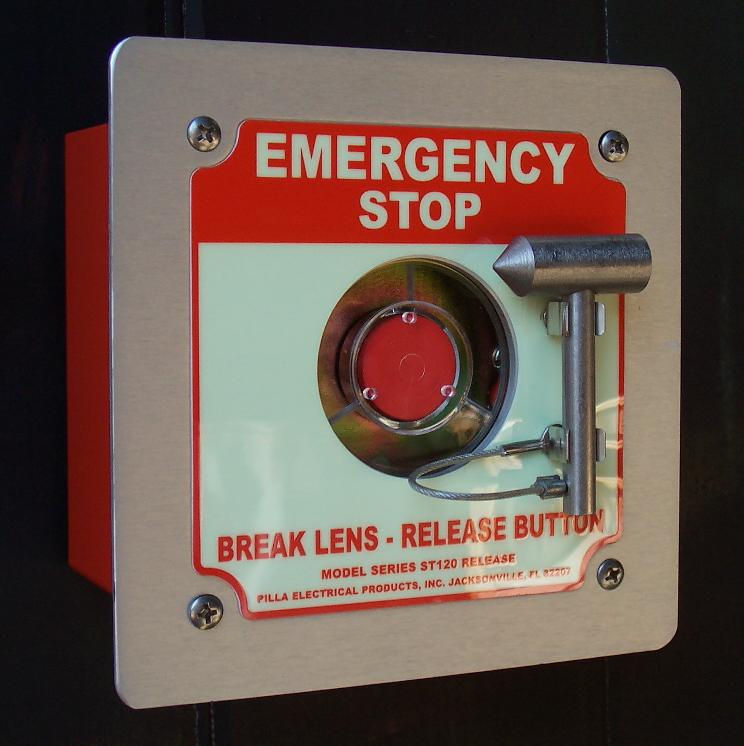

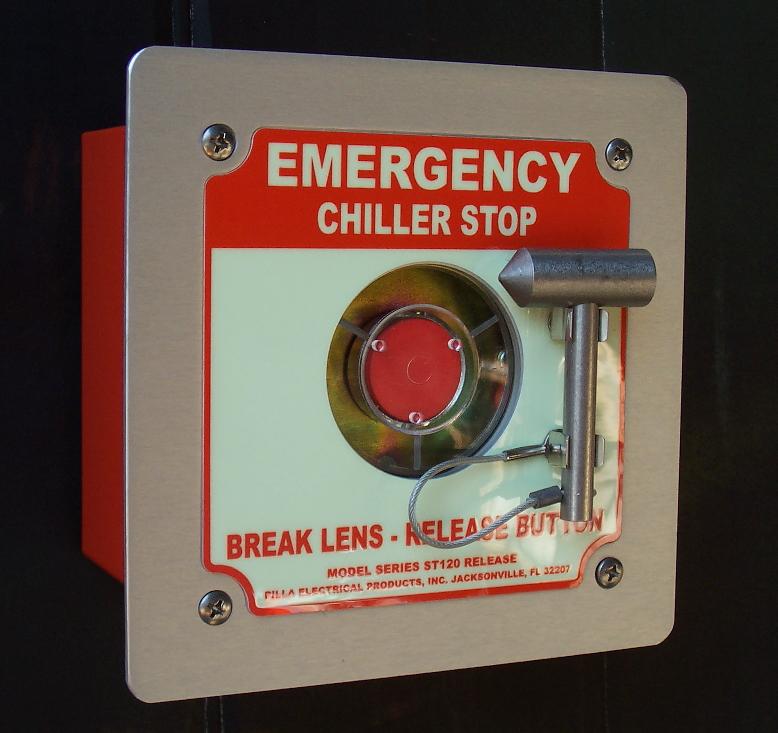

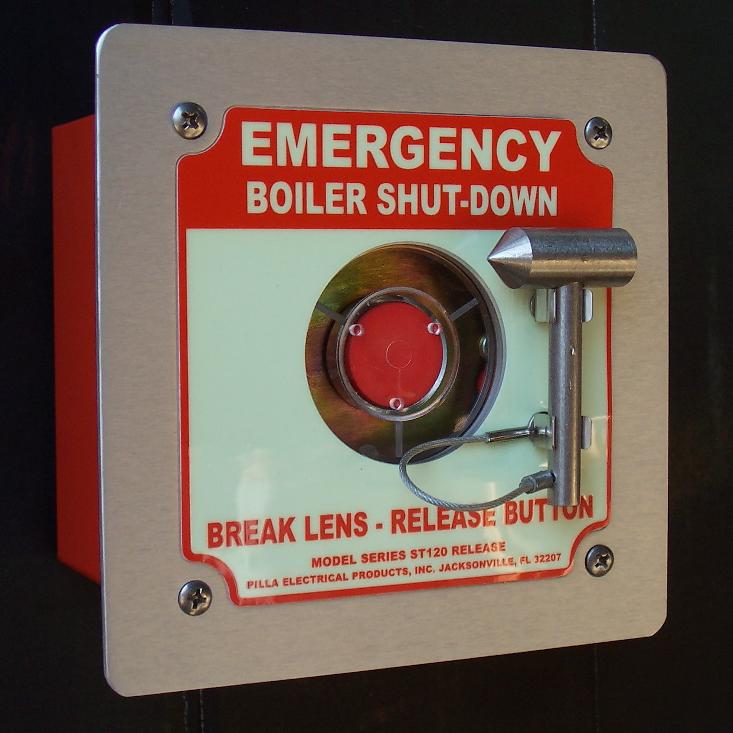

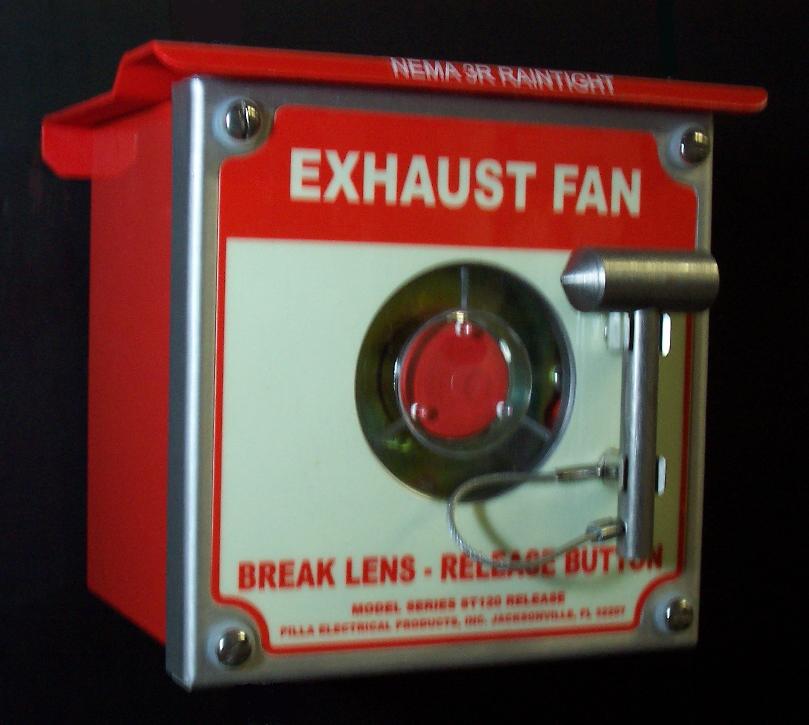

SPECIFIC LEGENDS AVAILABLE
IN ANY LANGUAGE: Add model suffix SL (specify text)
-
*NOTE: Contact block (s) supplied separately.
See Series PIL accessories
preceeding page.
