HVAC120

HVAC120FN1

HVAC120MT4

FEATURES

• Available for both flush and surface mount applications

• Available in both nonmetalic and (several) all-metal versions

• Contact blocks rated 10 AMP continuous up to 600 Volts*

• Large heavy duty mushroom operator, maintained "Pull TO Reset" (standard)

• Maintained "Turn To Reset" mushroom model also availabe:Add model suffix TW

• Momentary mushroom model also available: Add model suffix MO

• Key Release Maintained mushroom model restricts reset/release access only: Add suffix model KR

• Nonmetallic NEMA 4X enclosure with stainless steel machine screws (standard)

• Economy NEMA 1 all-metal models available for both surface and flush mount applications

• Economy NEMA 1 flush mount models available with backbox (see below) or for mounting on standard 4X4" wall box

• NEMA 1 all-metal models feature 1/2-3/4" knockout top, bottom & back of box for connection to 1/2" and 3/4" conduit

• Types NEMA 4/12 and NEMA 4X all-metal models feature 1/2-3/4" knockout on back of box for connection to 1/2" and 3/4" conduit

• Standard depth 4X4X2.38 inch deep surface nonmetallic enclosure accepts up to three contact blocks

• Extra Depth 4X4X4.5 inch deep surface nonmetallic enclosure accepts up to nine contact blocks: Add model suffix XD

• Super Depth 4X4X6.5 inch depp surface nonmetallic enclosure accepts up to fifteen contact blocks: Add model suffix SD

• All-metal models (surface and flush mount) use 4X4X3 inch enclosure accepting up to six contact blocks

• All-metal models available in both surface and flush mount versions in NEMA 1, NEMA4/12 and NEMA 4X (stainless steel) ratings

• ALL-METAL MODELS MEET NYC, CHICAGO AND OTHER SPECIFIC REQUIREMENTS: Add model suffix MT1, MT4 or MS as needed

• Illuminated models feature 24-120V AC/DC protected LED (standard) and can be wired to operate continuously or selectively. Incandescent or neon lamp also available on some devices: Add model suffix IL (Notes 1, 2)

• Restricted operator /station access available : See Series PIL accessory PILCLCOV1/PILCLHCOVK (Notes 3)

• "Alarm Sounds When Cover is Raised" restricted operator/station access available : See Series PIL accessory PILCLHCOVA (Notes 3, 4)

• "Alarm Sounds When Cover is Raised" restricted operator access available : See Series PIL acceossories PILCLMA/PILDLMA (Notes 3, 4)

• Restricted operator access available : Add model suffix RP/CP/RR/CR (for round push button operators)(Note 3)

• Restricted operator access available : Add model suffix GM or see PIL acceossory PILCLM (for mushroom operators)(Note 3)

• Restricted operator access available : See PIL accessories PILCLM/PILDML (for mushroom operators)(Note 3)

• *NOTE: Contact block (s) supplied separately. See Series PIL accessories preceeding page.


  Back to main page

Back to List of series and information page

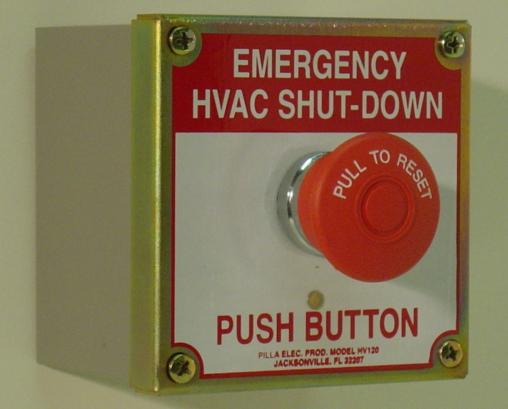

HVAC120N1

HVAC120F

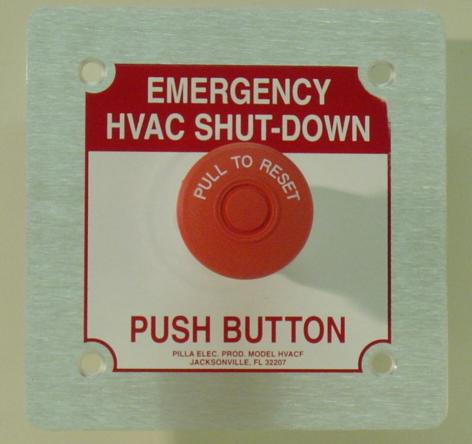

HVAC120FWB
