BSD120

BSD120FN1

BSD120MT4

MAXDUTY CONTACT BLOCKS
ADD SUFFIX MDY

CLICK ON A PIC
NEW OPTIONAL HORSEPOWER RATED
CONTACTS & DEVICES AVAILABLE ON ALL MODEL SERIES PUSH BUTTON AND WPS STATIONS
NEW PRODUCT
CARRY 24-A CONTINUOUS CURRENT(I=24 V)
SWITCH 12A @120V AC, 10A @24V DC
(pilot duty - inductive Loads)
START/STOP MOTORS:
1.5 Hp @ 120V AC
3 HP @ 240V AC
10 A FLA/60 A LRA @ 24V DC
TERMINALS ACCEPT UP TO 10 AWG WIRES


PUSH BUTTON
OPERATOR STATION
ONE DEVICE
PILLA MODEL SERIES BSD120







For product drawings, click on individual model number desired




See Series PIL accessories preceeding page.

FEATURES

  • Available for both flush and surface mount applications

  • Available in both nonmetalic and (several) all-metal versions

  • Contact blocks rated 10 AMP continuous up to 600 Volts*

  • Large heavy duty mushroom operator, maintained "Pull TO Reset" (standard)

  • Maintained "Turn To Reset" mushroom model also availabe:Add model suffix TW

  • Momentary mushroom model also available: Add model suffix MO

  • Key Release Maintained mushroom model restricts reset/release access only: Add suffix model KR

  • Nonmetallic NEMA 4X enclosure with stainless steel machine screws (standard)

  • Economy NEMA 1 all-metal models available for both surface and flush mount applications

  • Economy NEMA 1 flush mount models available with backbox (see below) or for mounting on standard 4X4" wall box

  • NEMA 1 all-metal models feature 1/2-3/4" knockout top, bottom & back of box for connection to 1/2" and 3/4" conduit

  • Types NEMA 4/12 and NEMA 4X all-metal models feature 1/2-3/4" knockout on back of box for connection to 1/2" and 3/4" conduit

  • Standard depth 4X4X2.38 inch deep surface nonmetallic enclosure accepts up to three contact blocks

  • Extra Depth 4X4X4.5 inch deep surface nonmetallic enclosure accepts up to nine contact blocks: Add model suffix XD

  • Super Depth 4X4X6.5 inch depp surface nonmetallic enclosure accepts up to fifteen contact blocks: Add model suffix SD

  • All-metal models (surface and flush mount) use 4X4X3 inch enclosure accepting up to six contact blocks

  • All-metal models available in both surface and flush mount versions in NEMA 1, NEMA4/12 and NEMA 4X (stainless steel) ratings

  • ALL-METAL MODELS MEET NYC, CHICAGO AND OTHER SPECIFIC REQUIREMENTS: Add model suffix MT1, MT4 or MS as needed

  • Illuminated models feature 24-120V AC/DC protected LED (standard) and can be wired to operate continuously or selectively. Incandescent or neon lamp also available on some devices: Add model suffix IL (Notes 1, 2)

  • Restricted operator /station access available : See Series PIL accessory PILCLCOV1/PILCLHCOVK (Notes 3)

  • "Alarm Sounds When Cover is Raised" restricted operator/station access available : See Series PIL accessory PILCLHCOVA (Notes 3, 4)

  • "Alarm Sounds When Cover is Raised" restricted operator access available : See Series PIL acceossories PILCLMA/PILDLMA (Notes 3, 4)

  • Restricted operator access available : Add model suffix RP/CP/RR/CR (for round push button operators)(Note 3)

  • Restricted operator access available : Add model suffix GM or see PIL acceossory PILCLM (for mushroom operators)(Note 3)

  • Restricted operator access available : See PIL accessories PILCLM/PILDML (for mushroom operators)(Note 3)

  • *NOTE: Contact block (s) supplied separately. See Series PIL accessories preceeding page.


    Back to main page

Back to List of series and information page

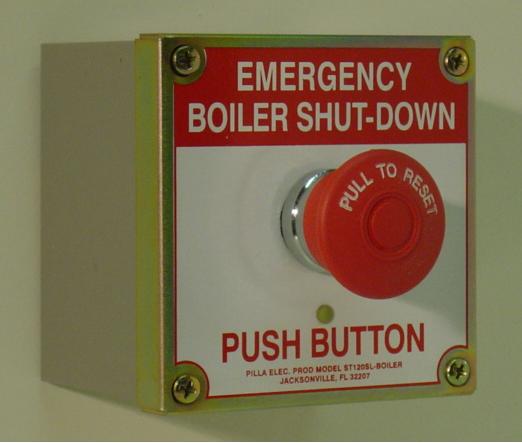

BSD120N1

BSD120F

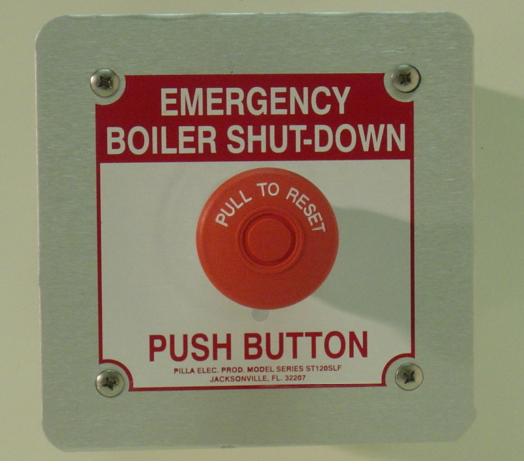

BSD120FWB
