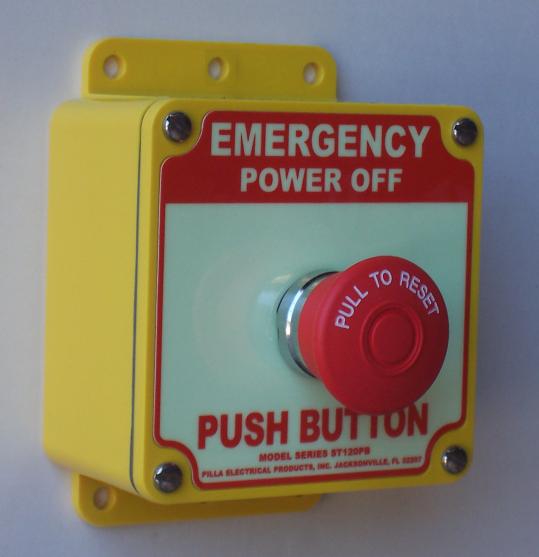

ST120PB

NEMA 4X &12

nonmetallic backbox

(see suffix HB below)

1-3 contact block capacity

Add suffix MO

Momentary 40mm mushroom model

Add suffix TW

"Turn To Reset" Maintained 40mm mushroom push button model

Add suffix GM

Guard for standard and optional suffix TW / KR / MO mushroom operator, lockable

Add suffix MT1

All-metal model, NEMA 1 rated,six contact block capacity, 1/2-3/4" knockout top & bottom

ADD suffix MT4

All-metal model, NEMA 4/12, rated,six contact capacity,1/2" threaded fitting bottom

Add suffix MS

All-stainless steel model,NEMA 4X/12 rated, six contact block capacity

Add suffix XD

Extra depth model for nine contact block capacity

Add suffix SD

Super depth model for fifteen contact block capacity

Add suffix IL

Iluminated 40mm model with 24-120V AC/DC red LED (standard-specify other voltage) (Note 1)

Add suffix KR

Key Release 40mm mushroom model with two keys,key required to reset after operation

Add suffix JM

Jumbo 60mm mushroom operator

Add suffix RP1

"Raise lid-Push button" model, padlockable solid lid over flush momentary operator (Note 2 below)

Add suffix RR

"Raise-lid-Release button" model, padlockable solid lid over extended momentary operator (Note 3 below)

Add suffix CP1

Same as suffix RP model but with transparent lid showing momentary operator (Note 2 below)

Add suffix CR

Same as suffix RR model but with transarent lid showing momentary operator (Note 3 below)

Add suffix HS

Special text or logo imprinted on push button face, specify (minimum quantity/surcharge may apply)

Add suffix HB

Female PVC entrace fitting anstalled (bottom of backbox is standard), for 3/4" PVC conduit

Add suffix CLM

One Clear Hinged Lockout lid for single device, for WPS__: MO/MP/TW/KR/K1-K11 (Note 8)

Add suffix DLM

Same as suffix CLM but prevents single mushroom (including momentary) from being released/extended (Note 8)

Add suffix CLMA

Same as suffix CLM but fitted with switch that actuates audible alarm when hinged lockout lid is raised (Notes 1, 10)

Add suffix DLMA

Same as suffix DLM but fitted with switch that actuates audible alarm when hinged lockout lid is raised (Notes 1, 10)

Add suffix MDY

Carry 24-A continuous current (I=24A) ,Switch 12A@120V AC, 10A@24V DC(Pilot Duty- Inductive Loads)
Start/Stop Motors:1.5Hp @ 120V AC, 3Hp @ 240V AC, Terminals accept up to 10 AWG wires

Add suffix MDYKR

Carry 24-A continuous current (I=24A) ,Switch 12A@120V AC, 10A@24V DC(Pilot Duty- Inductive Loads)
Start/Stop Motors:1.5Hp @ 120V AC, 3Hp @ 240V AC, Terminals accept up to 10 AWG wires

*NOTE:

Contact blocks supplied separately; specify accessories PILNOCB and/or PILNCCB. See Series PIL Accessories pages 4-5.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS at Note 3 page 18. NOTE THAT CONTACT BLOCK CAPACITIES SHOWN ABOVE ARE 50% GREATER THAN OLD CAPACITIES INDICATED IN BULLETIN 120.20.

*NOTE1:

Suffix IL option stations are supplied with a 3" deep metal or 4" deep nonmetallic backbox. LED only on suffix IL illuminated mushroom operators (standard maintained "Pull to Reset" and suffix MO). Suffix CP1 also available with optional incandescant or neon lamp: Add addendum IC or NE to suffix IL (120V standard-specify other). Suffix IL illumination option not available on suffix TW/KR/JM devices.

*NOTE2:

For mainained operation of suffix RP/CP models, use suffix RP2/CP2 for a flush maintained (Push on/Push Off) operator.

*NOTE3:

Suffix RR/Cr models require the use of a device (not included) to secure the RR/CR lid in the closed position over the (compressed) extended head operator. When device is removed, the operator releases/extends, raising the lid./The operator is maintained in the extended position until the lid is reclosed and secured. See PILRRPIN and PILRRLCK at Series PIL Accessories page 4-5.
