NEW PRODUCT CLICK ON A PIC

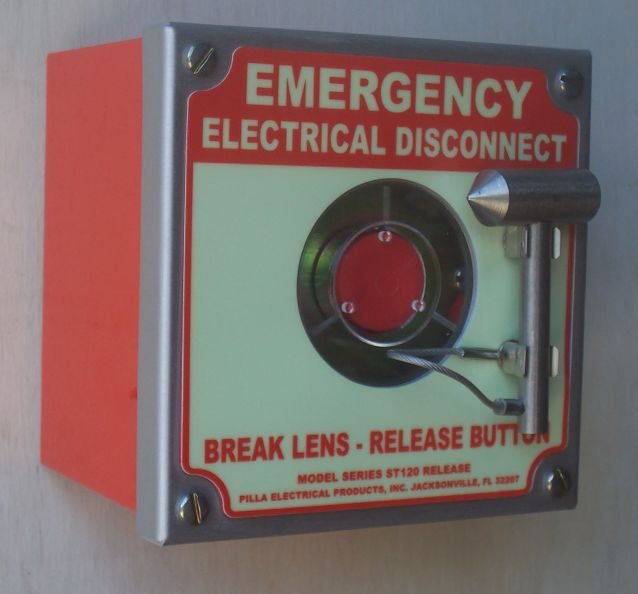

ST120SN4XBR
Operator is held in a depressed position by a glass disk. When the glass disk is broken with the hammer, the button returns to a normal extended position




NEW PRODUCT CLICK ON A PIC

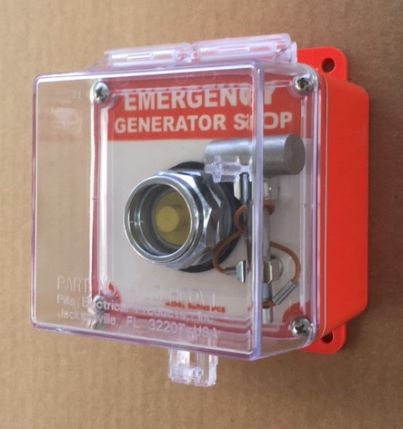

ST120SN4XBRCOV1
OPERATOR IS HELD IN A DEPRESSED POSITION BY A GLASS DISC.WHEN THE GLASS DISC IS BROKEN WITH THE HAMMER, BUTTON RETURNS TO A NORMAL EXTENDED POSITION




NEW PRODUCT CLICK ON A PIC

ST120SN4XBRCOVA
OPERATOR IS HELD IN A DEPRESSED POSITION BY A GLASS DISC.WHEN THE GLASS DISC IS BROKEN WITH THE HAMMER, BUTTON RETURNS TO A NORMAL EXTENDED POSITION




NEW PRODUCT CLICK ON A PIC

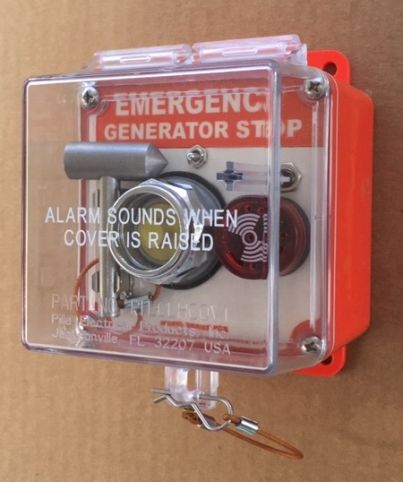

WPS2G
with alarm & PILCLHCOVA
alarm cover




NEW PRODUCT CLICK ON A PIC


MST1OO
Momentary Nema4X-nonmetallic(standard)


MODEL SERIES

NEW PRODUCT CLICK ON A PIC

WPSBR
Break Glass Wallplate Station




NEW PRODUCT CLICK ON A PIC


ST120SN4XNM
Break Lens Nema4X-nonmetallic









MAXDUTY
CONTACT
BLOCKS

ADD
SUFFIX
MDY


NEW PRODUCT CLICK ON A PIC

NEW OPTIONAL HORSEPOWER RATED
CONTACTS & DEVICES AVAILABLE ON ALL MODEL SERIES PUSH BUTTON AND BREAK GLASS STATIONS- CARRY 24-Amp CONTINUOUS CURRENT
(I=24 V)
SWITCH
12Amp @120V AC,
10Amp @24V DC
(pilot duty - inductive Loads)
START/STOP MOTORS:
1.5 Hp @ 120V AC
3 HP @ 240V AC
10 A FLA/60 A LRA @ 24V DC
TERMINALS ACCEPT UP TO 10 AWG WIRES








MAXDUTY
CONTACT
BLOCKS

ADD
SUFFIX
MDY
NEW PRODUCT CLICK ON A PIC

WPSKRMDY
Wallplate Station




NEW PRODUCT CLICK ON A PIC


WPSMPMDY
Wallplate Station
