Add suffix SO
|
Alternative standard

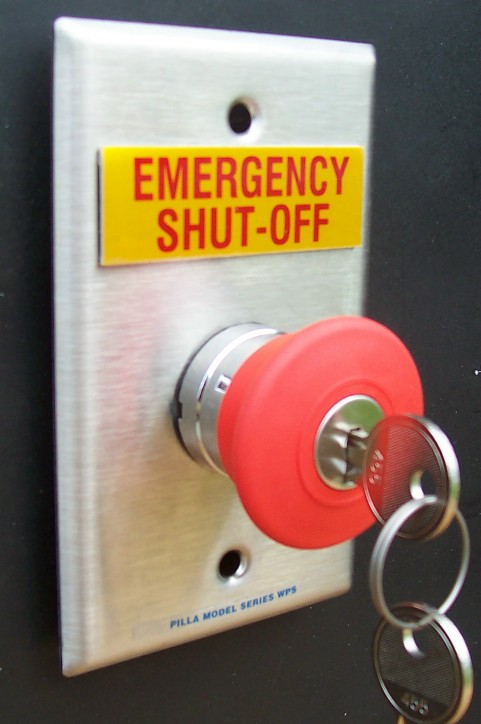

legend: EMERGENCY SHUT_OFF (Note 9)
|
|
Add
suffix ES
|

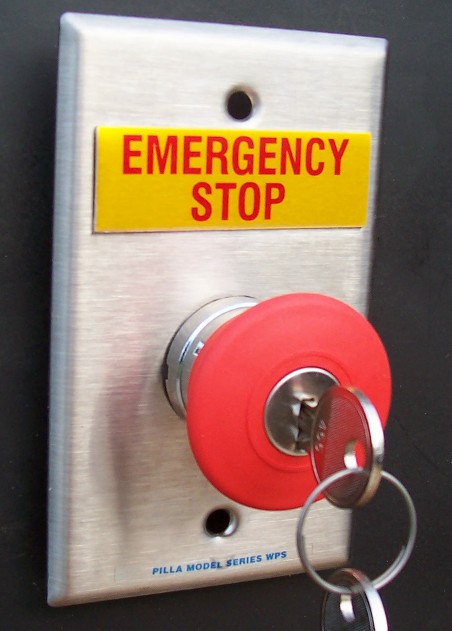

Alternative standard legend: EMERGENCY STOP (Note 9)
|
|
Add suffix GR
|
Guarded head for
models WPS__: YF/YX/DF/DX with round push button operators
|
|
Add suffix GM
|
Guard for models

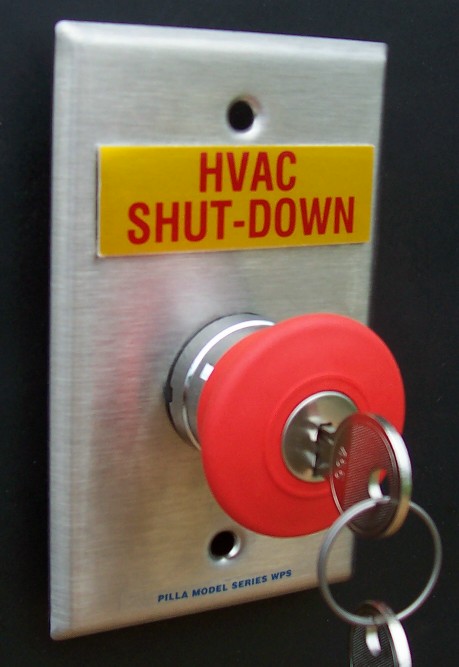

WPS__: MP/TW/KR/MO with 40mm mushroom operators, lockable
|
|
ADD suffix IL
|
Illuminated operator
model with 24-120V AC/DC LED (standard). Optional incandescent or neon
lamp alos available on some devices (Notes 2, 3, 4, 5)
|
|
Add suffix CLO
|
One Clear Hinged
Lockout lid for single device, for WPS__: YF/YX/DF/DX/PT/P1-P6/K1-K11
(Notes 1, 8)
|
|
Add suffix CLM
|
One
Clear Hinged Lockout lid for single device, for WPS__: MO/MP/TW/KR/K1-K11
(Note 8)
|
|
Add
suffix DLM
|
Same
as suffix CLM but prevents single mushroom (including momentary) from
being released/extended (Note 8)
|
|
Add
suffix SL
|

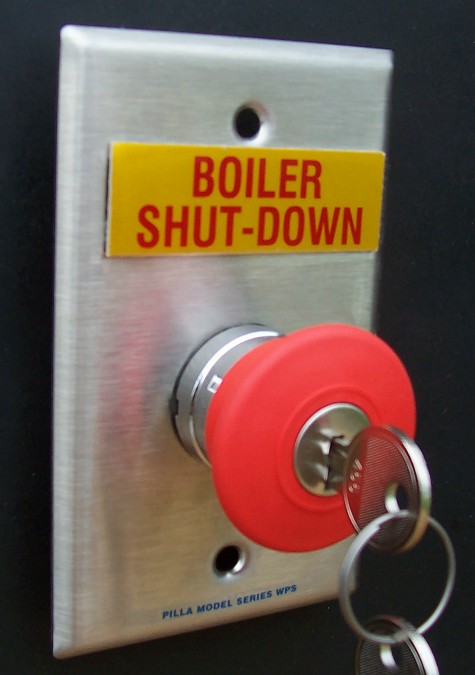

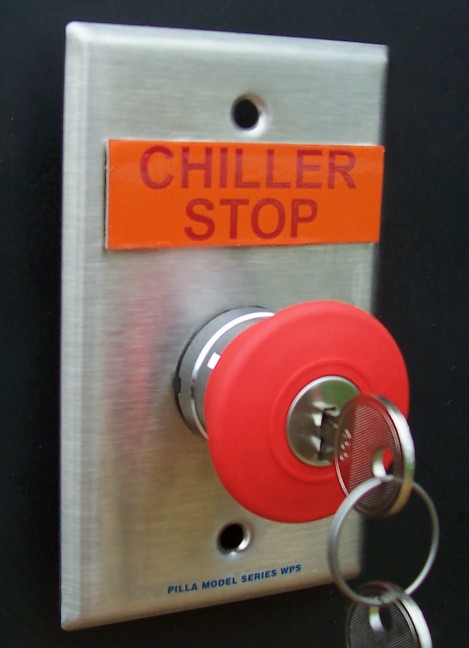

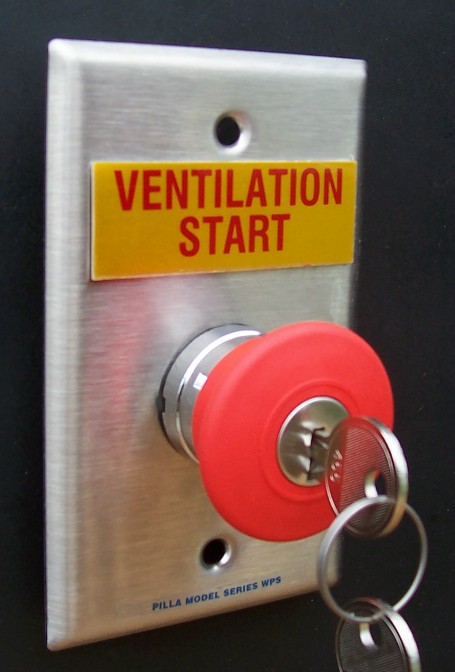

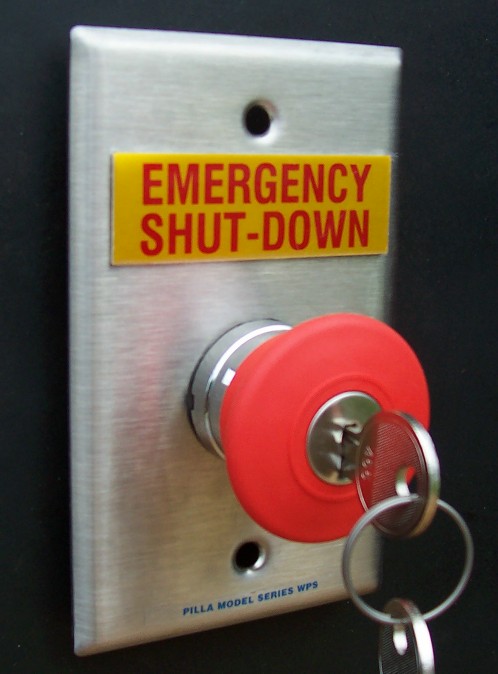

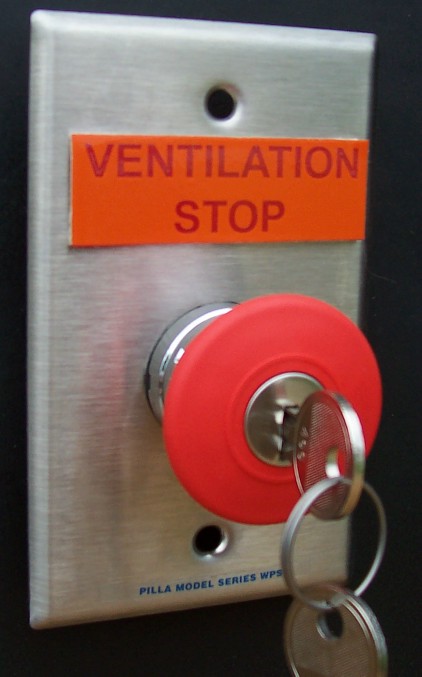

Specific
Legend (specify text)
|
|
|
|
*NOTE:
|
Contact blocks supplied
separately; specify accessories PILNOCB and/or PILNCCB. See Series PIL
Accessories pages 4-5.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS
at Note 3 page 18.
|
|
*NOTE 1:
|
Short handle only.
Compatible with optional suffix CLO and accessory PILCLO single device
clear hinged lockout lid.
|
|
*NOTE 2 :
|
Includes 24-120V
AC/DC LED (standard).Specify other voltages/extra bright if desired. Optional
incandescent or neon lamp available on illuminated (suffix IL) versions
of models WPSYF/WPSYX and model WPSPL--add the indicated addendum to suffix
IL; IC for incandescent lamp or NE for neon lamp.
|
|
*NOTE 3 :
|
If Illumination
is desired, add suffix IL to model number (Notes 2, 4, 5). Not available
on models WPS__: TW/KR/K1-K11.
|
|
*NOTE 4:
|
Model WPSPL devices
and illuminated (suffix IL) versions of model WPS__: YF/YX/DF/DX devices
are available in lens colors other than (standard) red. Illuminated (suffix
IL) versions of model WPS__: P1/P2/P3/P4/P5/P6 devices are available in
lens colors other than (standard) clear. Add the appropriate addndum to
suffix IL as indicated:LR =Red; LC = Clear; LG = Green; LA = Amber; LB
=Blue. Keyed selector device models not available with illumination.
|
|
*NOTE 5:
|
Model WPS__: IL/B1/B2/B3
models requirethe use of an extra deep wall box.
|
|
*NOTE 6:
|
Unless specified
otherwise, "Raise lid - Push botton" stations wil be supplied
as suffix RP1/CP1 (momentary operator) as standard. For maintained operation
of "Raise lid - Push botton" models, specify suffix RP2/CP2.
|
|
*NOTE 7:
|
Models WPSRR/WPSCR
"Raise lid - Release button" models require the use of a device
{not included} as a pin/lockout/tagout/seal to secure the RR/CR lid in
the closed position over the (compressed) type YX extended head round
operator. When device is removed, the type YX operator releases/extands,
raising the lid. The operator is maintained in the extanded position until
the lid is reclosed and secured. See PILRRPIN and PILRRLCK at Series PIL
Accessories following page.
|
|
*NOTE 8:
|
These items are
lockable/sealable. Suffix CLO is compatible with suffix K1-K11 keyed devices
without key inserted. Suffix CLM is compatible with suffix K1-K11 devices
with and without key inserted. Suffix DLM is for use with MP/TW/KR. For
use in accordance with application codes and requirements.
|
|
*NOTE 9:
|
If standard (main)

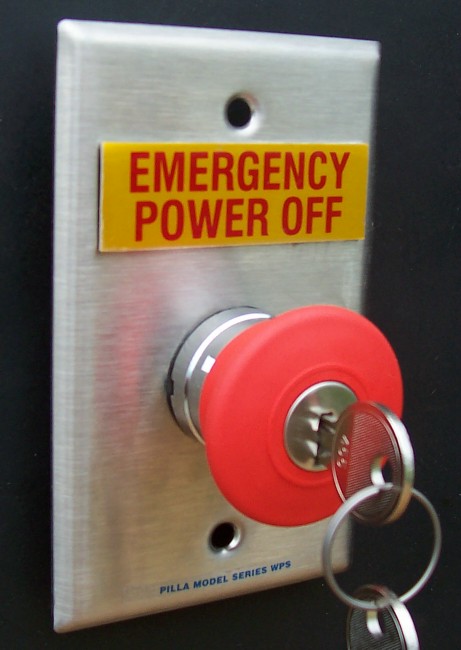

legend EMERGENCY POWER OFF is not desired, add suffix SO or ES as indicated
for alternative standard legend or suffix SL for Specific Legend. Also
see accessories PILBI/PILCI/PILBL/PILCL for small text on device. (Note
10)
|
|
*NOTE 10:
|
No main legend supplied
as standard on these situations. See Note 9 for optional Specific Legend
and device text, if desired.
|
