NEW OPTIONAL HORSEPOWER RATED
CONTACTS & DEVICES AVAILABLE ON ALL MODEL SERIES PUSH BUTTON AND BREAK GLASS STATIONS
NEW PRODUCT
CARRY 24-A CONTINUOUS CURRENT(I=24 V)
SWITCH 12A @120V AC, 10A @24V DC
(pilot duty - inductive Loads)
START/STOP MOTORS:
1,5 Hp @ 120V AC
3 HP @ 240V AC
10 A FLA/60 A LRA @ 24V DC
TERMINALS ACCEPT UP TO 10 AWG WIRES


MAXDUTY CONTACT BLOCKS
ADD SUFFIX MDY
MDY SUFFIX AVAIABLE ONLY FOR
WPSMP=WPSMPMDY
WPSMO=WPSMOMDY
WPSKR=WPSKRMDY
WPSTW=WPSTWMDY

WPSYF WPSYX WPSDF WPSDX WPSRP1 WPSRP2 WPSRR WPSCP1 WPSCP2 WPSCR WPSMO WPSMP WPSTW WPSKR WPSBR WPSBP1 WPSBP2 WPSB1 WPSB2 WPSB3 WPSTG WPSPL WPSP1 WPSP2 WPSP3 WPSP4 WPSP5 WPSP6 WPSK1 WPSK2 WPSK3 WPSK4 WPSK5 WPSK6 WPSK7 WPSK8 WPSK9 WPSK10 WPSK11 WPSMPCLM WPSMOCLM CLM DLM WPSKRCLM WPSTWCLM WPSKRMDY WPSMPMDY


WPS
SINGLE GANG WALLBOX DEVICES

RED MAINTAINED 40mm MUSHROOM, "PULL TO RESET" (PUSH-PULL)

WPSMP

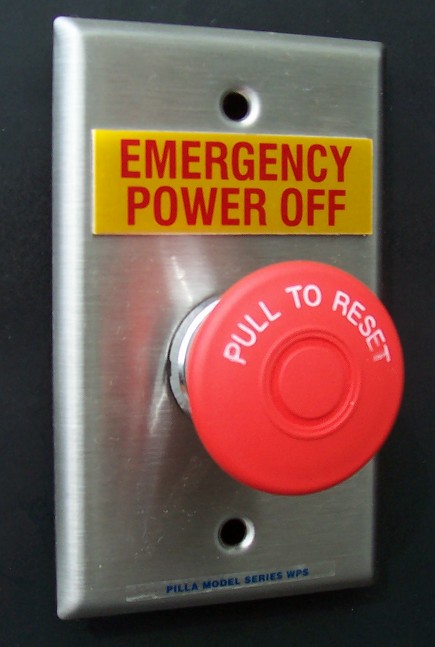

Emergency Power- Off

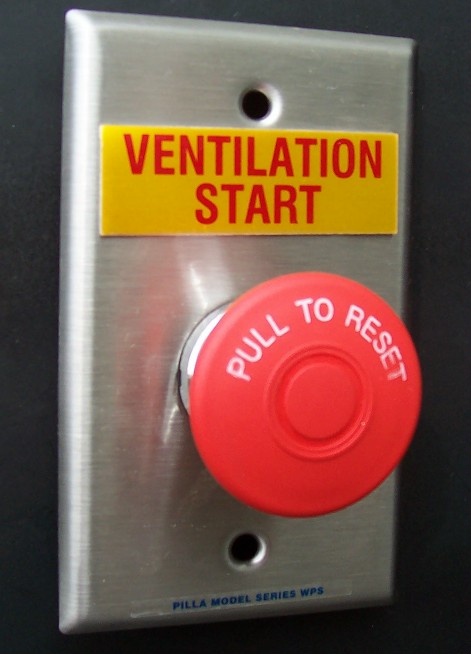

WPSMP
Ventilation Start

WPSMP

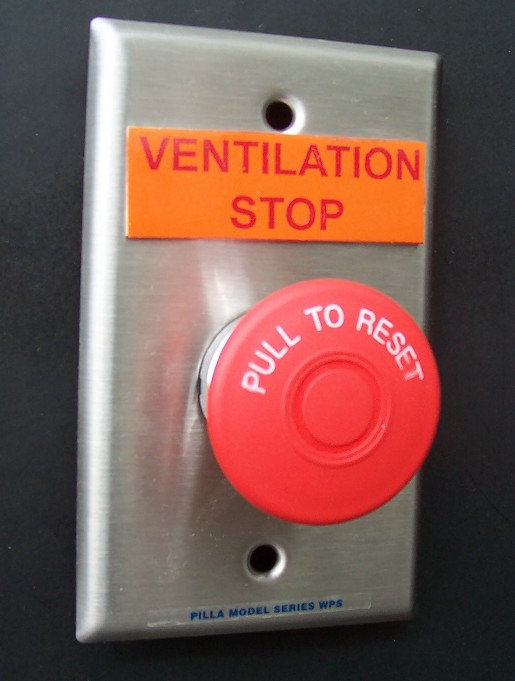

Ventilation Stop

WPSMP

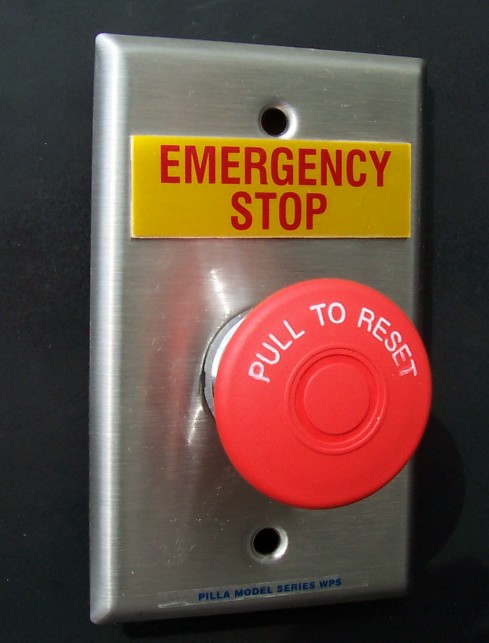

Emergency Stop

WPSMP

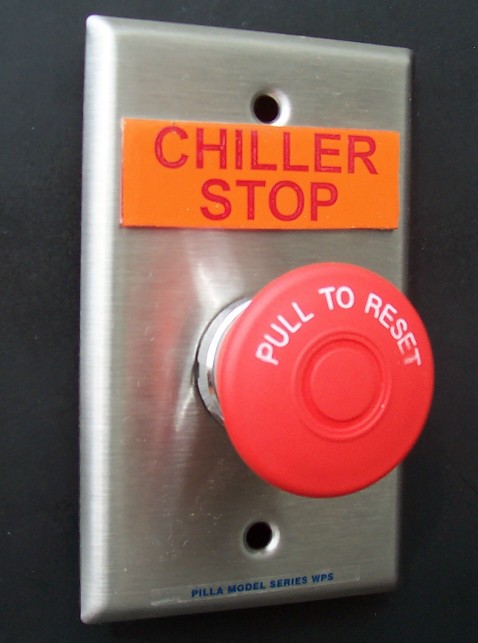

Chiller Stop

WPSMP

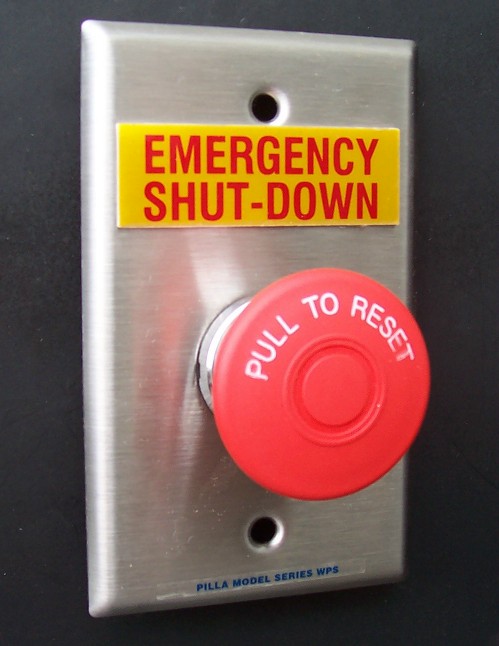

Emergency Shut-Down

WPSMP

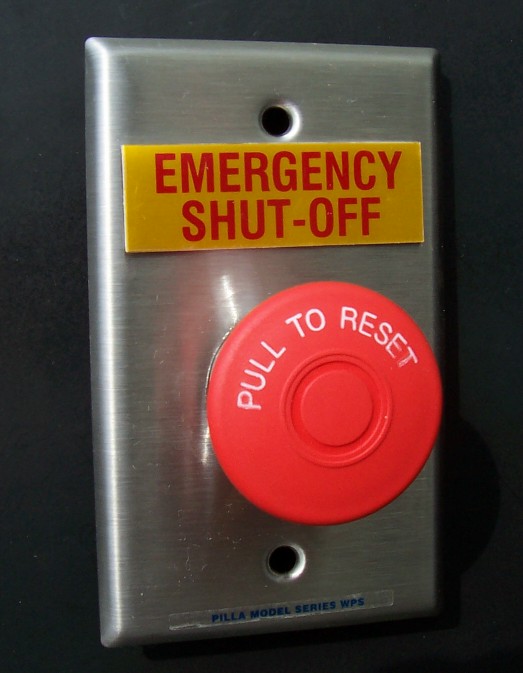

Emergency Shut-Off

WPSMP

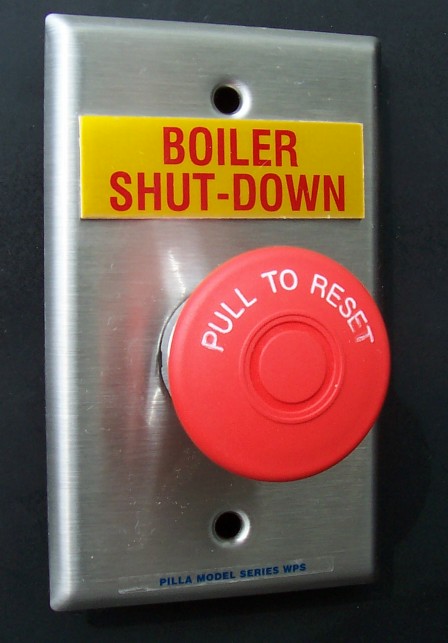

Boiler Shut-Down

WPSMP

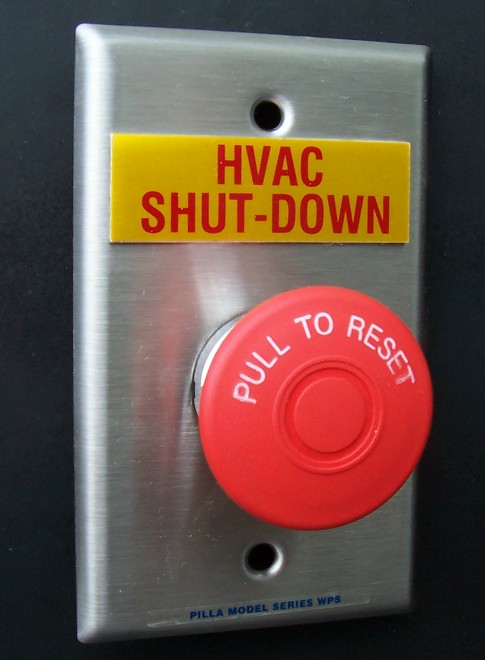

HVAC Shut-Down



SERIES WPS EMERGENCY POWER OFF (Standard, Notes 9, 10) Wall Plate Operator Station, 1 Device, Brushed Stainless Steel,Flush Mount only, NEMA 1 (Indoor) Rated. For use with standard 2.13" deep Single gang (2-3/16 x 4") wall box (not supplied). See OPTIONS AVAILABLE further below for other features including alternative standard and Specific Legends. UL LISTED

Back to List of series and information page

See Series PIL accessories preceeding page.

WPSMPMDY


Description

Red Maintained 40mm Mushroom, "Pull To Reset" (Push-Pull) (Note 3)


OPTIONS
AVAILABLE


TO ORDER:The preceding Standard Models in series WPS may be ordered as-is or with optional features listed below. Add desired optional suffix(s) to the indicated Standard Model number chosen from above..

Add suffix SO

Alternative standard legend: EMERGENCY SHUT_OFF (Note 9)

Add suffix ES

Alternative standard legend: EMERGENCY STOP (Note 9)

ADD suffix IL

Illuminated operator model with 24-120V AC/DC LED (standard). Optional incandescent or neon lamp alos available on some devices (Notes 2, 3, 4, 5)

Add suffix CLM

One Clear Hinged Lockout lid for single device, for WPS__: MO/MP/TW/KR/K1-K11/MDY
*Available September 2010

Add suffix CLMA

Same as suffix CLM but fitted with switch that actuates audible alarm when hinged lockout lid is raised
*Available September 2010

Add suffix SL

Specific Legend (specify text)

*NOTE:

Contact blocks supplied separately; specify accessories PILNOCB and/or PILNCCB. See Series PIL Accessories pages 4-5.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS at Note 3 page 18.

*NOTE 1:

Short handle only. Compatible with optional suffix CLO and accessory PILCLO single device clear hinged lockout lid.

*NOTE 2 :

Includes 24-120V AC/DC LED (standard).Specify other voltages/extra bright if desired. Optional incandescent or neon lamp available on illuminated (suffix IL) versions of models WPSYF/WPSYX and model WPSPL--add the indicated addendum to suffix IL; IC for incandescent lamp or NE for neon lamp.

*NOTE 3 :

If Illumination is desired, add suffix IL to model number (Notes 2, 4, 5). Not available on models WPS__: TW/KR/K1-K11.

*NOTE 4:

Model WPSPL devices and illuminated (suffix IL) versions of model WPS__: YF/YX/DF/DX devices are available in lens colors other than (standard) red. Illuminated (suffix IL) versions of model WPS__: P1/P2/P3/P4/P5/P6 devices are available in lens colors other than (standard) clear. Add the appropriate addndum to suffix IL as indicated:LR =Red; LC = Clear; LG = Green; LA = Amber; LB =Blue. Keyed selector device models not available with illumination.

*NOTE 5:

Model WPS__: IL/B1/B2/B3 models requirethe use of an extra deep wall box.

*NOTE 6:

Unless specified otherwise, "Raise lid - Push botton" stations wil be supplied as suffix RP1/CP1 (momentary operator) as standard. For maintained operation of "Raise lid - Push botton" models, specify suffix RP2/CP2.

*NOTE 7:

Models WPSRR/WPSCR "Raise lid - Release button" models require the use of a device {not included} as a pin/lockout/tagout/seal to secure the RR/CR lid in the closed position over the (compressed) type YX extended head round operator. When device is removed, the type YX operator releases/extands, raising the lid. The operator is maintained in the extanded position until the lid is reclosed and secured. See PILRRPIN and PILRRLCK at Series PIL Accessories following page.

*NOTE 8:

These items are lockable/sealable. Suffix CLO is compatible with suffix K1-K11 keyed devices without key inserted. Suffix CLM is compatible with suffix K1-K11 devices with and without key inserted. Suffix DLM is for use with MP/TW/KR. For use in accordance with application codes and requirements.

*NOTE 9:

If standard (main) legend EMERGENCY POWER OFF is not desired, add suffix SO or ES as indicated for alternative standard legend or suffix SL for Specific Legend. Also see accessories PILBI/PILCI/PILBL/PILCL for small text on device. (Note 10)

*NOTE 10:

No main legend supplied as standard on these situations. See Note 9 for optional Specific Legend and device text, if desired.

*NOTE:Contact blocks supplied separately; specify normally open PILNOCB and/or normally closed PILNCCB.
See Series PIL accessories following page.
