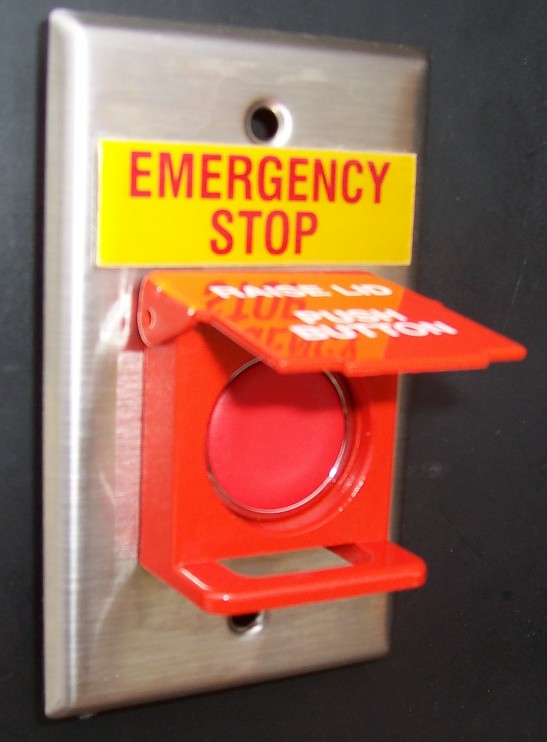

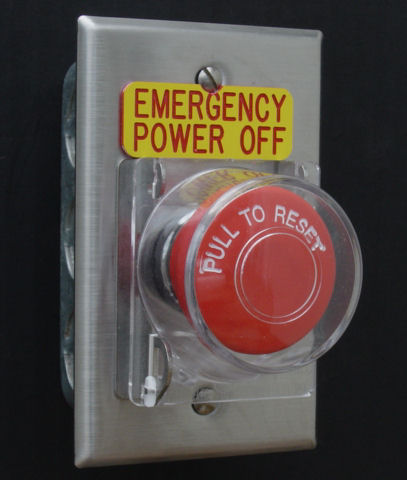

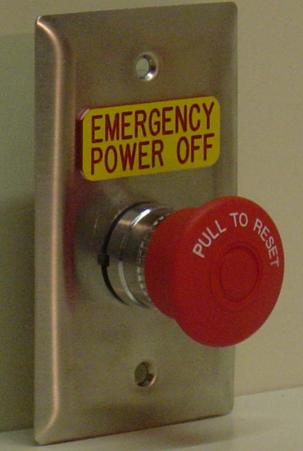

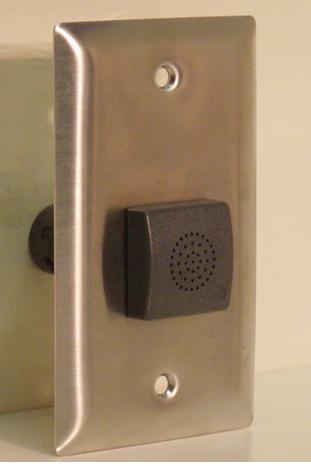

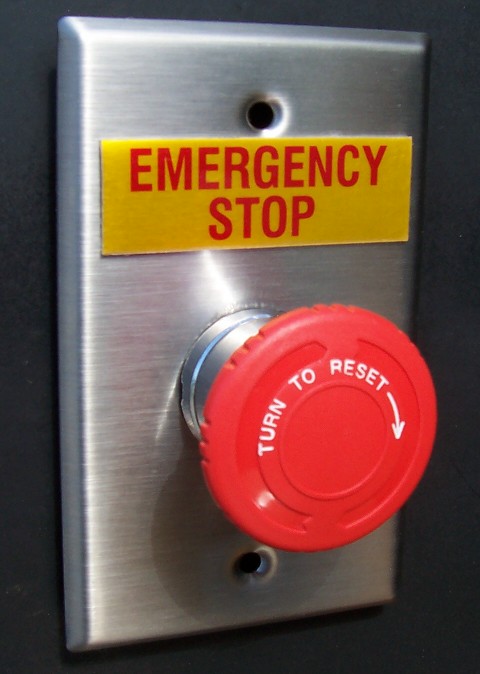

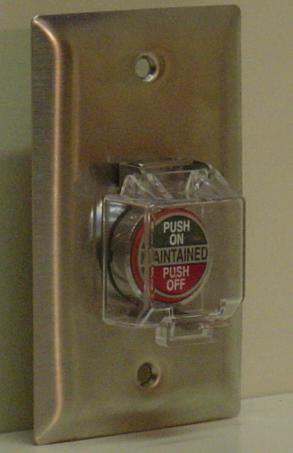

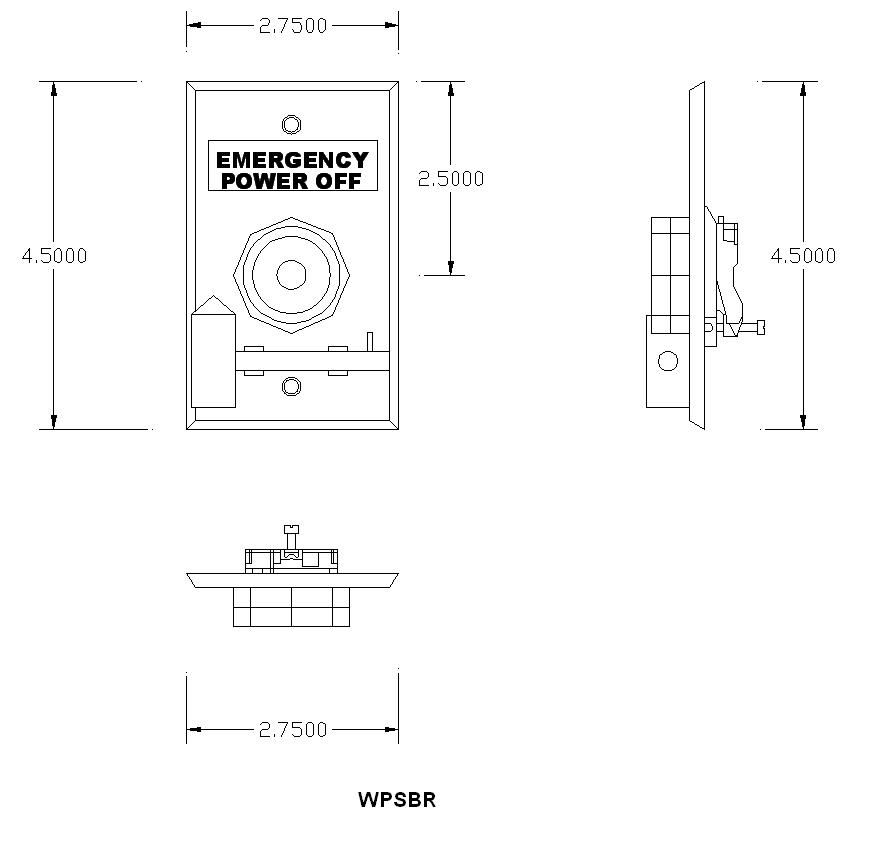

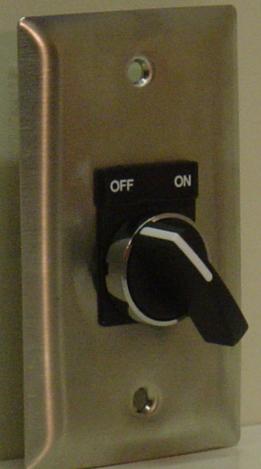

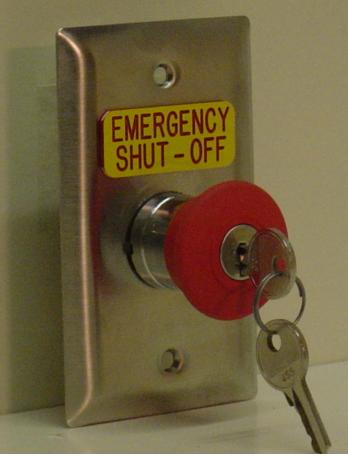

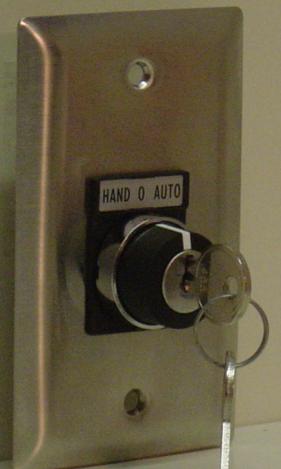

WPSDFCLO WPSMP WPSTWES WPSKRSO WPSB1 WPSP2 WPSK4 WPSRP1ES WPSKRMDY WPSBR PILCLM WPSMPCLM WPSMPMDY

CLICK ON A PIC NEW OPTIONAL HORSEPOWER RATED CONTACTS & DEVICES AVAILABLE ON ALL MODEL SERIES PUSH BUTTON AND BREAK GLASS STATIONS NEW PRODUCT CARRY 24-A CONTINUOUS CURRENT(I=24 V) SWITCH 12A @120V AC, 10A @24V DC (pilot duty - inductive Loads) START/STOP MOTORS: 1,5 Hp @ 120V AC 3 HP @ 240V AC 10 A FLA/60 A LRA @ 24V DC TERMINALS ACCEPT UP TO 10 AWG WIRES

MAXDUTY CONTACT BLOCKS ADD SUFFIX MDY MDY SUFFIX AVAIABLE ONLY FOR WPSMP=WPSMPMDY WPSMO=WPSMOMDY WPSKR=WPSKRMDY WPSTW=WPSTWMDY

SERIES WPS EMERGENCY POWER OFF (Standard, Notes 9, 10) Wall Plate Operator Station, 1 Device, Brushed Stainless Steel,Flush Mount only, NEMA 1 (Indoor) Rated. For use with standard 2.13" deep Single gang (2-3/16 x 4") wall box (not supplied). See OPTIONS AVAILABLE further below for other features including alternative standard and Specific Legends. UL LISTED
