MST1SS
Start-Stop

Watertight, Dusttight
& Oiltight
NEMA 4/12
START-STOP,ON-OFF,OPEN-CLOSE
UP-DOWN, RAISE-LOWER, HAND-AUTO,
FORWARD-REVERSE
STATIONS






MST1SS



See Series PIL accessories preceeding page.

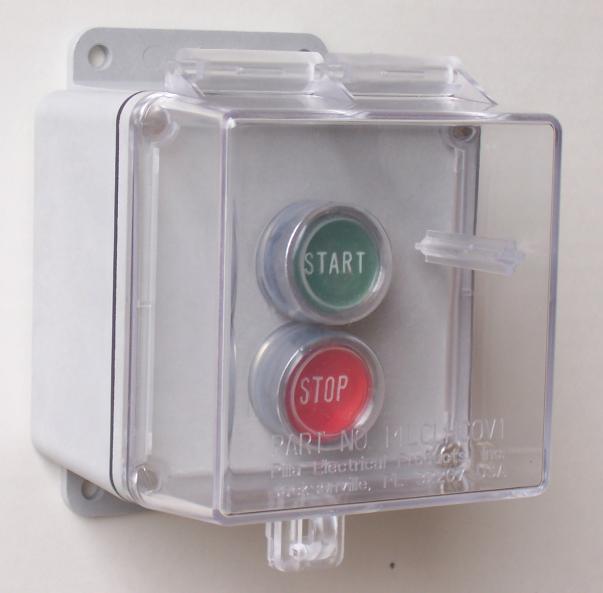

MST1SS
Start-Stop
with
PILCLHCOV1

Watertight, Dusttight
& Oiltight
NEMA 4/12

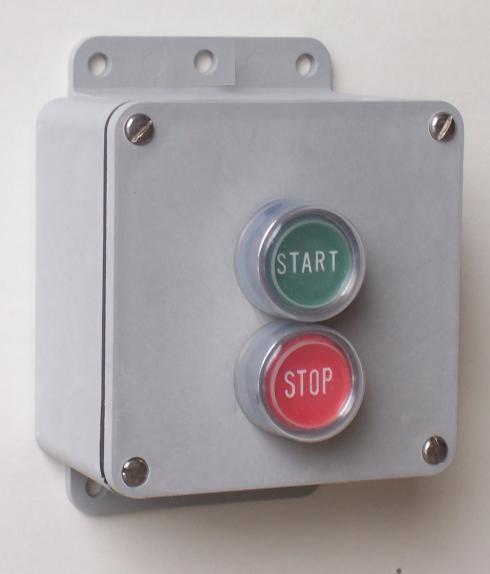

MST1SS
Start Stop

MST1OO
On Off

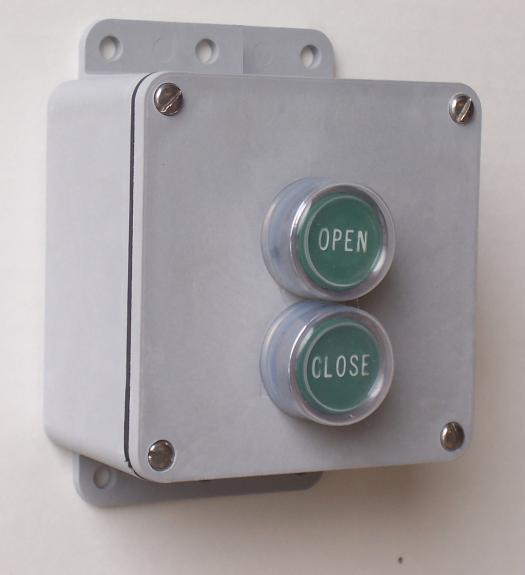

MST1OC
Open Close

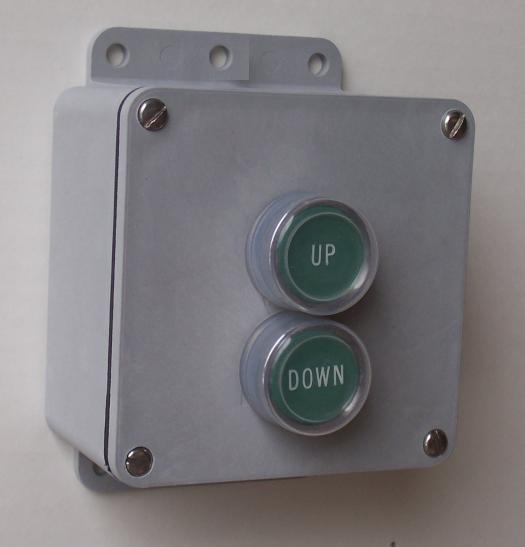

MST1UD
Up Down

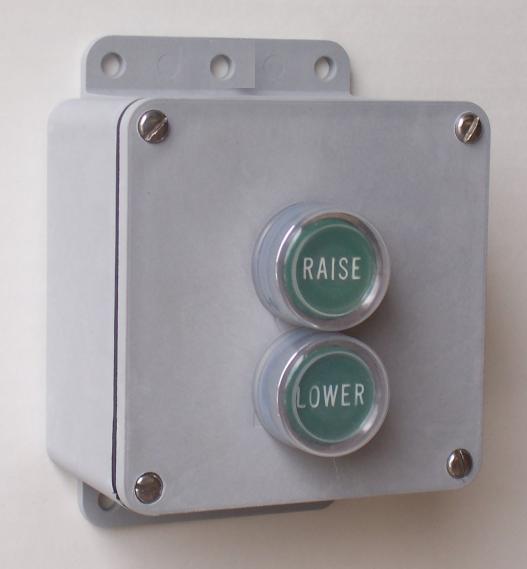

MST1RL
Raise Lower

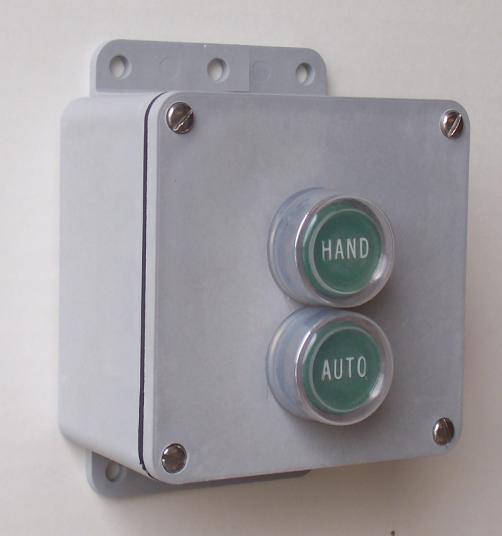

MST1HA
Hand Auto

MST1FR
Forward Reverse

MST1SS-Start-Stop

To print PICTURES, click here: MST1SS- Start-Stop-PDF FILE
To print DRAW comimg soon: MST1SS-Start-Stop-PDF FILE

Description
Nonmetallic backbox



OPTIONS
AVAILABLE


TO ORDER:The above standard models may include optional features listed below.Add the indicated suffix(s) for the optional feature(s) desired to the standard model number chosen from above.

ADD SUFFIX SS
Green Button START, Red Button STOP
ADD SUFFIX OO
Green Button ON, Red Button OFF
ADD SUFFIX OC
Green Button OPEN, Green Button CLOSE
ADD SUFFIX UD
Green Button UP, Green Button DOWN
ADD SUFFIX RL
Green Button RAISE, Green Button LOWER
ADD SUFFIX HA
Green Button HAND, Green Button AUTO
ADD SUFFIX FR
Green Button FORWARD, Green Button REVERSE

*NOTE:Contact blocks supplied separately; specify normally open PILNOCB and/or normally closed PILNCCB.
See Series PIL accessories following page.
