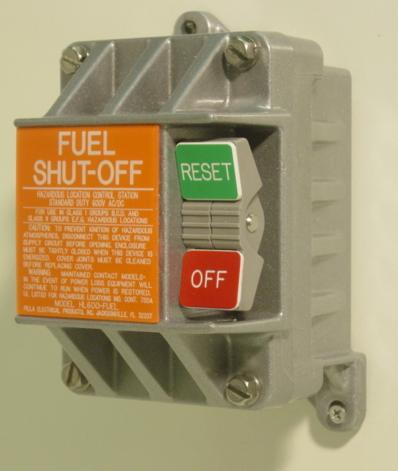

HL600-FUEL |
600 Volt 5 Amp Continuous Duty Rated (See "Contact Electrical Ratings" Table Below), NEMA 7-9 Rated Diecast Aluminum Enclosure, Surface Mount Only, Maintained Contacts (Standard) (See Note 1 and "Contacts Symbol (C.S.) Diagrams" below), CONTACTS INCLUDED, 1/2 - 1/4 NPT Threaded Opening on Botton Only for 1/2" Pipe, Choice of 11 Standard Legend Models, Specific Legend Model also available (Specify), Operator Inscriptions: Green ON/Red OFF (Standard), UL LISTED
|
|
|
|
Blow up |Normal |Reduce Blow up |Normal |Reduce .jpg) Blow up |Normal |Reduce  Blow up |Normal |Reduce |
|
Description |
|
Surface mount |
Class I Groups B/C/D and Class II Groups E/F/G Locations |
Cast Aluminum |
|
OPTIONS AVAILABLE |
|
|
Add suffix MO |
Momentary model (Add contact configuration figure number desired from chart below. See NOTE 1 above.) |
|
Add suffix EX |
Extended head on red button only |
|
Add suffix RS |
Green button "Reset", Red button "Stop" |
|
Add suffix CI |
Custom Inscriptions on One or Both Buttons (Specify) |
|
NOTE 1: |
See "Contact Electrical Ratings" and "Contact Symbol" (D.S.) Diagrams" further below or at "Electrical Specifier's Guide" page [ ]. Unless specified otherwise, station is supplied with maintained/interlocked contacts per Contact Symbol (C.S.) 10 from "Contact Symbol (C.S.) Diagrams". If momentary contact operation is desired, add suffix MD from OPTIONS AVAILABLE below and specify choice of Contact Symbols (C.S.) 1, 3, 8. 16, 17, 19, 25, 109, 145 or 146 from diagram further below. |
| *NOTE 1: | |
| *NOTE 2: |
FEATURES
UL LISTED
Standard Duty Control Station areindoor rated and combine one/two/three devices into one station
Devices available include Round push button, Square push button, Selector switch
Compact dimensions: 3.75x2x2 inch (HxWxD) one/two device station: 5x2x2 inch (HxWxD) three device station
Surface and Flush (Recessed) mount models available
Flush mount models sold less enclosure and mount on standard one/two gang wall box (not supplied)
SIlluminated pilot devices include 120V incandescent lamp (standard) and can be wiredto operate continuously or selectively
SRestricted access to entire control station available: See Series CSA accessory CSACLHA/HAF/HB/HBF as indicated
Restricted access to individual device available: See Series SCA accessory CSALOKT or CSALOIN as indicated
Contact blocks rated 5 Amp continuous up to 600Volts. CONTACTS INCLUDED ON SERIES SCS STATIONS (Note 1)
