PILNOCBMDY&
PILNCCBMDY
WPS
Maximum Duty 20 Amp continuous duty rated Red Maintained 40mm Mushroom
with clear protective cover PILCLM-30
SINGLE GANG WALLBOX DEVICES
PILLA MODEL SERIES WPS

WPSMPMDYCLMSL-30

For product drawings, click on individual model number desired


SERIES WPS EMERGENCY POWER OFF (Standard, Notes 9, 10) Wall Plate Operator Station, 1 Device, Brushed Stainless Steel,Flush Mount only, NEMA 1 (Indoor) Rated. For use with standard 2.13" deep Single gang (2-3/16 x 4") wall box (not supplied). See OPTIONS AVAILABLE further below for other features including alternative standard and Specific Legends. UL LISTED
include several NEMA ratings.

WPSYF WPSYX WPSDF WPSDX WPSRP1 WPSRP2 WPSRR WPSCP1 WPSCP2 WPSCR WPSMO WPSMP WPSTW WPSKR WPSBR WPSBP1 WPSBP2 WPSB1 WPSB2 WPSB3 WPSTG WPSPL WPSP1 WPSP2 WPSP3 WPSP4 WPSP5 WPSP6 WPSK1 WPSK2 WPSK3 WPSK4 WPSK5 WPSK6 WPSK7 WPSK8 WPSK9 WPSK10 WPSK11 WPSMPCLM WPSMOCLM CLM DLM WPSKRCLM WPSTWCLM WPSKRMDY WPSMPMDY WPSTWMDY WPSMOMDY WPSMPMDYCLM-30 WPSKRMDYCLM-30 WPSTWMDYCLM-30 PILCLM-30

See Series PIL accessories preceeding page.

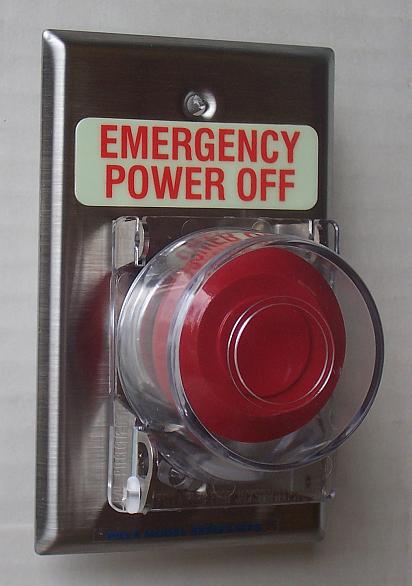

WPSMPMDYCLM-30
Emergency
Power- Off

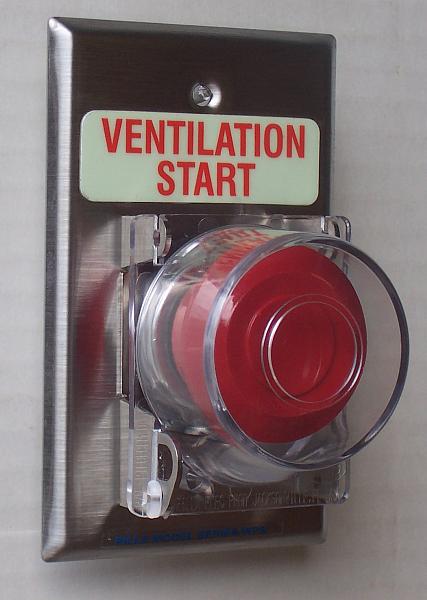

WPSMPMDYCLMSL-30
Ventilation
Start

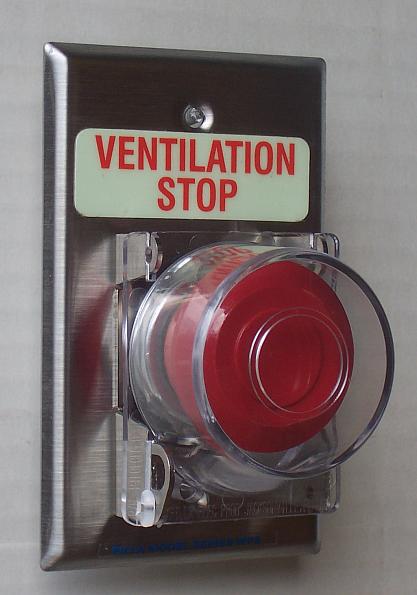

WPSMPMDYCLMSL-30
Ventilation
Stop

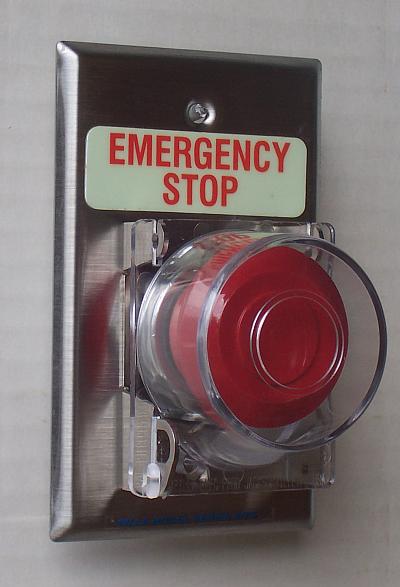

WPSMPMDYCLMES-30
Emergency
Stop

WPSMPMDYCLMSL-30
Chiller
Stop

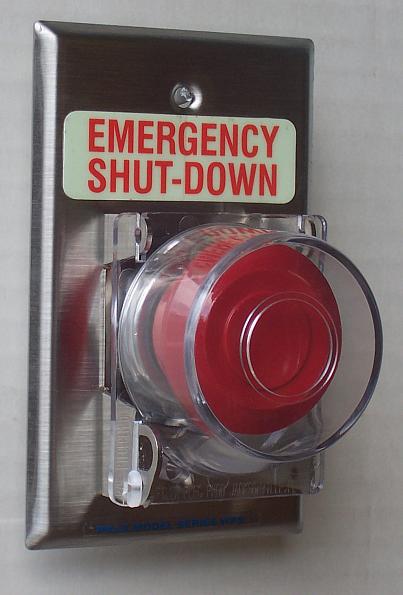

WPSMPMDYCLMSL
Emergency
Shut-Down

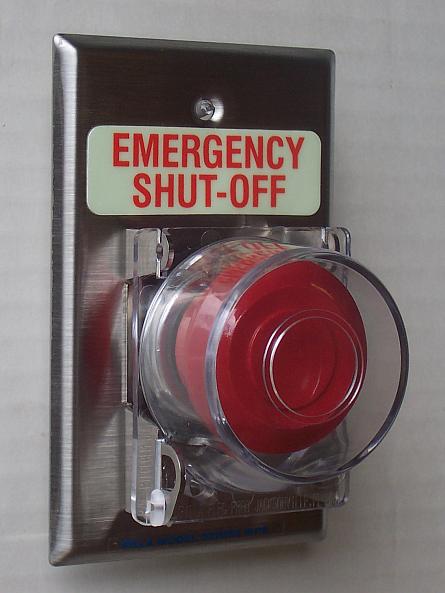

WPSMPMDYCLMSO
Emergency
Shut-Off

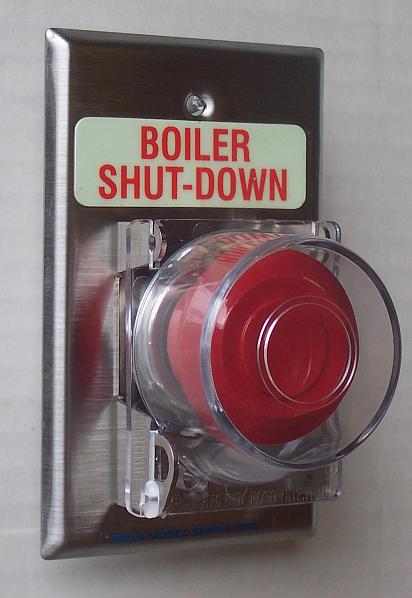

WPSMPMDYCLMSL
Boiler
Shut-Down

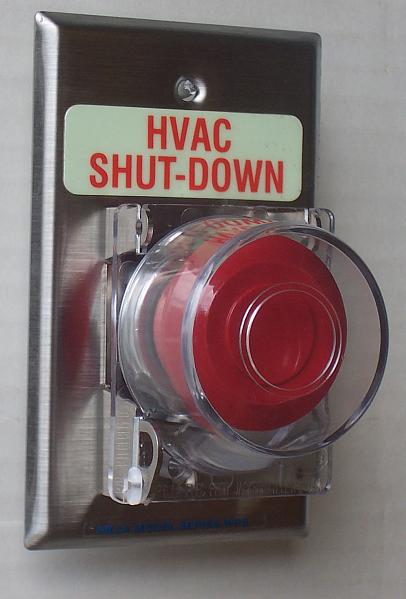

WPSMPMDYCLMSL
HVAC
Shut-Down

WPSMPMDYCLMSL-30

Description
Flush mount single-gang Stainless Steel.Maximum Duty 20 Amp continuous duty rated Red Maintained 40mm Mushroom
with clear cover PILCLM-30



OPTIONS
AVAILABLE


TO ORDER:The above standard models may include optional features listed below.Add the indicated suffix(s) for the optional feature(s) desired to the standard model number chosen from above.

ADD SUFFIX SO
Alternative standard legend: EMERGENCY SHUT-OFF (Note 9)
ADD SUFFIX ES
Alternative standard legend: EMERGENCY STOP (Note 9)
ADD SUFFIX SL

Specific legend ( specify when ordering )

ADD SUFFIX 2G
Two Gang stainless steel wallplate model (instead of standard single gang plate)
ADD SUFFIX NG
Neoprene gasket supplied for NEMA 3/12 Rating (outdoor use)
NOTE:

Contact blocks supplied separately: specify accesories PILNOCBMDY and/or PILNCCBMDY. See Series PIL Accessories below.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS at Note 3 page 18.

*NOTE 9:

If standard (main) legend EMERGENCY POWER OFF is not desired, add suffix SO or ES as indicated for alternative standard legend or suffix SL for Specific Legend. Also see accessories PILBI/PILCI/PILBL/PILCL for small text on device. (Note 10)
*NOTE 10:

No main legend supplied as standard on these situations. See Note 9 for optional Specific Legend and device text, if desired.

*NOTE:Contact blocks supplied separately; specify normally open PILNOCBMDY and/or normally closed PILNCCBMDY.
See Series PIL accessories following page.
