WPS
Maximum Duty 20 Amp continuous duty rated Red Maintained 40mm Mushroom with two
keys, key required to reset only

SINGLE GANG WALLBOX DEVICES
PILLA MODEL SERIES WPS

WPSKRMDY

For product drawings, click on individual model number desired


SERIES WPS EMERGENCY POWER OFF (Standard, Notes 9, 10) Wall Plate Operator Station, 1 Device, Brushed Stainless Steel,Flush Mount only, NEMA 1 (Indoor) Rated. For use with standard 2.13" deep Single gang (2-3/16 x 4") wall box (not supplied). See OPTIONS AVAILABLE further below for other features including alternative standard and Specific Legends. UL LISTED
include several NEMA ratings.

WPSYF WPSRP1 WPSB1 WPSMO WPSP3 WPSK2 WPSK7 WPSMPCLM WPSMOMDY WPSMPMDYCLM-30
WPSYX WPSRP2 WPSB2 WPSMP WPSP4 WPSK3 WPSK8 WPSMOCLM WPSTWMDY
WPSDF WPSCP1 WPSB3 WPSKR WPSP5 WPSK4 WPSK9 WPSKRCLM WPSKRMDY
WPSDX WPSCP2 WPSTG WPSP1 WPSP6 WPSK5 WPSK10 WPSTWCLM WPSKRMDYCLM-30
WPSPL WPSBR WPSTW WPSP2 WPSK1 WPSK6 WPSK11 WPSMPMDY WPSTWMDYCLM-30

See Series PIL accessories preceeding page.


WPSKRMDY
Emergency
Power- Off

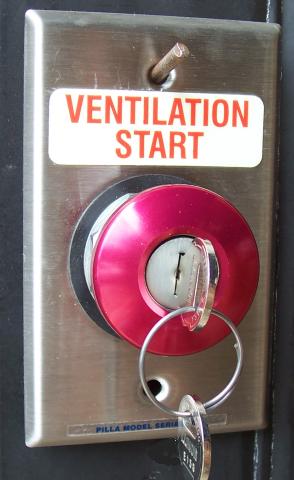

WPSKRMDYSL
Ventilation
Start

WPSKRMDYSL
Ventilation
Stop

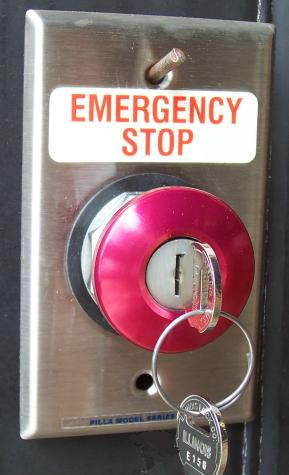

WPSKRMDYES
Emergency
Stop

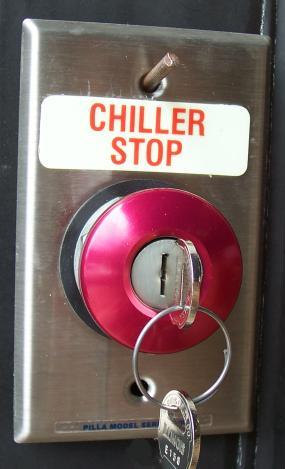

WPSKRMDYSL
Chiller
Stop

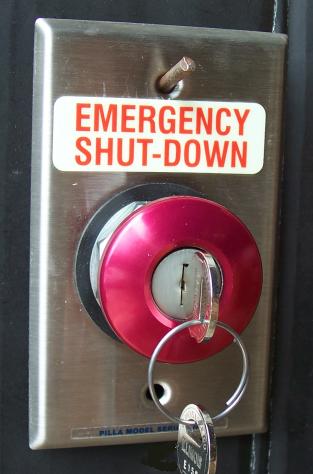

WPSKRMDYSL
Emergency
Shut-Down

WPSKRMDYSO
Emergency
Shut-Off

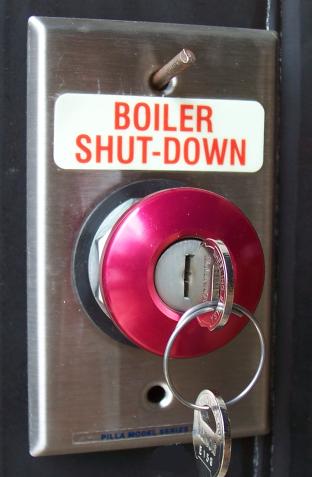

WPSKRMDYSL
Boiler
Shut-Down

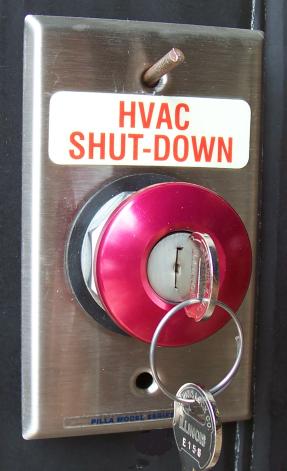

WPSKRMDYSL
HVAC
Shut-Down


WPSKRMDY

Description
Flush mount single-gang Stainless Steel.Maximum Duty 20 Amp continuous duty rated Red Maintained 40mm Mushroom with two
keys, key required to reset only



OPTIONS
AVAILABLE


TO ORDER:The above standard models may include optional features listed below.Add the indicated suffix(s) for the optional feature(s) desired to the standard model number chosen from above.

ADD SUFFIX SO Alternative standard legend: EMERGENCY SHUT-OFF (Note 9)
ADD SUFFIX ES Alternative standard legend: EMERGENCY STOP (Note 9)
ADD SUFFIX SL

Specific legend ( specify when ordering )

ADD SUFFIX 2G
Two Gang stainless steel wallplate model (instead of standard single gang plate)
ADD SUFFIX NG
Neoprene gasket supplied for NEMA 3/12 Rating (outdoor use)
NOTE:

Contact blocks supplied separately: specify accesories PILNOCBMDY and/or PILNCCBMDY. See Series PIL Accessories below.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS at Note 3 page 18.

*NOTE 9:

If standard (main) legend EMERGENCY POWER OFF is not desired, add suffix SO or ES as indicated for alternative standard legend or suffix SL for Specific Legend. Also see accessories PILBI/PILCI/PILBL/PILCL for small text on device. (Note 10)

*NOTE 10:

No main legend supplied as standard on these situations. See Note 9 for optional Specific Legend and device text, if desired.

*NOTE:Contact blocks supplied separately; specify normally open PILNOCBMDY and/or normally closed PILNCCBMDY.
See Series PIL accessories following page.




Back to List of series and information page
