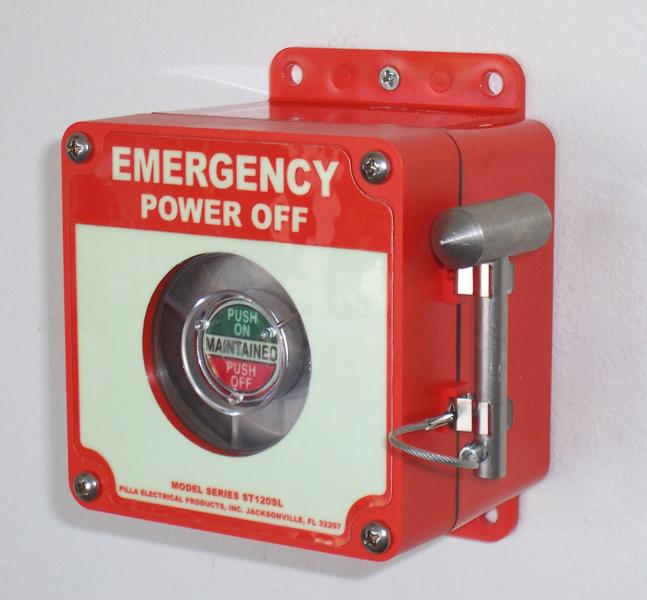

ST120SN4XNMBP2
EMERGENCY DISCONNECT
OPERATOR STATION
BREAK LENS TO PUSH BUTTON
PILLA MODEL SERIES ST120

ST120SN4XNMBP2

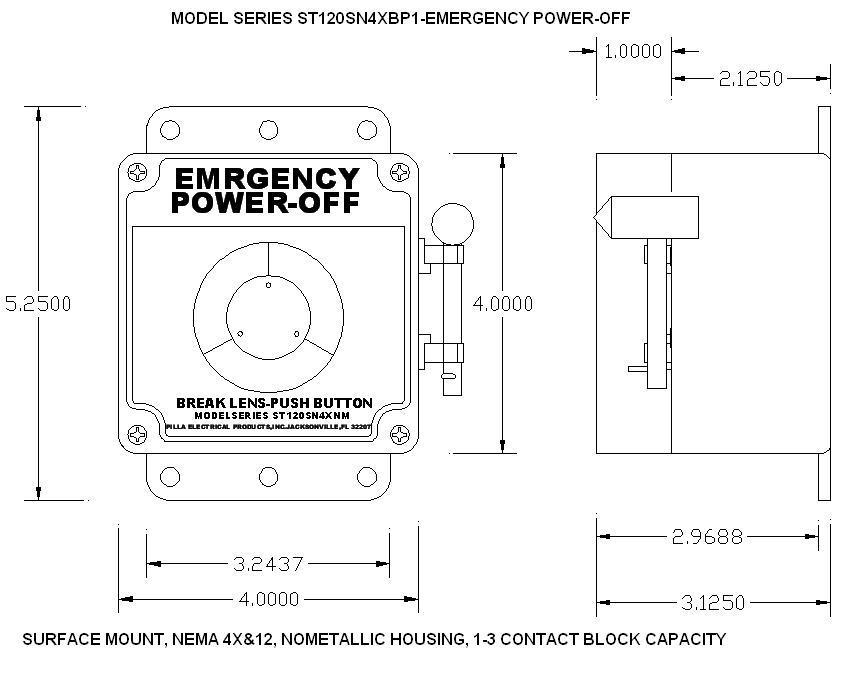

For product drawings, click on individual model number desired




See Series PIL accessories preceeding page.

CLEAR PROTECTIVE COVER PILCLHCOV1


ST120SN4XNMBP2

To print PICTURES, click here: ST120SN4XNMBP2-Emergency Power-Off-PDF FILE

Description
SURFACE MOUNT
NEMA 4X
NONMETALLIC
SEE SUFFIX HB BELOW
1-3 CONTACI BLOCK CAPACITY



OPTIONS
AVAILABLE


TO ORDER:The above standard models may include optional features listed below.Add the indicated suffix(s) for the optional feature(s) desired to the standard model number chosen from above.

ADD SUFFIX BP1
"Break Lens-Push Button" model, momentary operator behind lens
ADD SUFFIX BP2
"Break Lens-Push Button" model, maintained (push on/push off) operator behind lens
ADD SUFFIX IL
Iluminated operator model with 24-120V AC/DC red LED (standard-specify other voltage ) (Note1)
ADD SUFFIX SL

Specific legend ( specify when ordering )

NOTE:

Contact blocks supplied separately: specify accesories PILNOCB and/or PILNCCB. See Series PIL Accessories below.For electrical ratings,
see CONTACT BLOCK CHARACTERISTICS at Note 3 page 18. NOTE THAT CONTACT BLOCK CAPACITIES SHOWN ABOVE ARE 50% GREATER
THAN OLD CAPACITIES INDICATED IN BULLETIN 120.2.

*NOTE 1:

For optional incandescant or neon lamp: Add addendum IC or NE to suffix IL (120V standard-specify other). Suffix IL illumination option
available on standard and suffix BP1/P1/P3 models but not available on suffix BP2/TG models.
*NOTE 2:

For operation other than (standard) maintained in all positions on suffix P1/P3 models, specify when ordering. See Series PIL
Accessories (below) for descriptions of two/three position selector and two/three position keyed selector switches available.
Keyed selector switches include two keys.

FEATURES

  • Non Metallic housing suitable in coastal areas

  • Harsh chemical environments

  • Waterproof

  • Dustproof

  • Oiltight

  • Uses Pilla lift cover ( Part No.PILCLHCOV1)

  • Legends for HVAC, Boiler, Ventilation, Fuel, Gas, Exhaust

  • Also available with 20 AMP operator & contacts specify MDY suffix.

  • Operator automatically releases when lens is broken (standard-Suffix BP1 / BP2 models require button to be manually depressed)

  • Contact blocks rated 10 AMP continuous up to 600 Volts*

  • Max Duty contacts rated 20 AMP up to 600Volts*

  • Accepts up to 3 contact blocks PILNOCB or PILNCCB: or 2 Max Duty contacts rated 3HP@ @ 240V, 1.5 HP@ 120V.

  • Standard models: Type PILNCCB / PILNOCB contacts remain open/closed with lens intact--close/open when lens is broken

  • Suffix BP1/BP2/TG/P1/P3/K1/K4 models: Type PILNCCB / PILNOCB contacts remain closed/open with lens intact--open/close when lens is broken and device manually actuted

  • Illuminated model includes 120V lamp standard (specify other voltage): Add model suffix IL

  • One extra replacement lens included with each ST120 (also See PILENS@ Series PIL accessories preceeding page

  • SPECIFIC LEGENDS AVAILABLE IN ANY LANGUAGE: Add model suffix SL (specify text)

  • *NOTE: Contact block (s) supplied separately. See Series PIL accessories preceeding page.
