POWER CONTROL STATION -TWO-POSITION
KEYED SELECTOR
See Series PIL accessories preceeding page. |

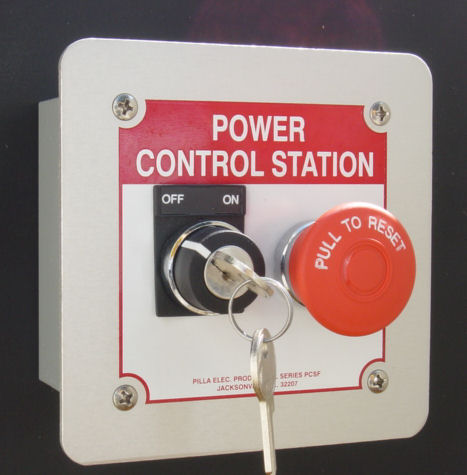

PCS2KXFN1 |
|
Blow up |Normal |Reduce Blow up |Normal |Reduce .
|
Description |
Flush mount |
NEMA 1 |
Metal backbox |
1/2-3/4" knockout top, bottom & back |
contact block capacity 6 per station |
OPTIONS AVAILABLE |
|
Add suffix K2 |
Maintained Both positions, key removal Left/Right position (instead of standard keyed selector operation) |
Add suffix K3 |
Maintained Left positions, Momentary Right Position, key removal Left position (instead of standard keyed selector operation) |
Add suffix OO |
Leftl Position OFF, Right Position ON |
Add suffix OA |
Left Position OFF, Right Position AUTO |
Add suffix SS |
Left Position STOP, Right Position START |
Add suffix HL |
Left Position HIGH, Right Position LOW |
Add suffix OC |
Left Position OPEN, Right Position CLOSE |
Add suffix UD |
Left Position UP, Right Position DOWN |
Add suffix MA |
Left Position MANUAL, Right Position AUTO |
Add suffix FR |
Left Position FORWARD, Right Position REVERSE |
Add suffix CL |
One or two positions of selector Custom Lettered (specify) (Note: Text is lettering carrier above device ) |
Add suffix Z1 |
Additional Two-Position Keyed Selector (standard operation as described at series heading) as second device |
Add suffix Z2 |
Additional Two-Position Keyed Selector (same operation as described at suffix K2) as second device |
Add suffix Z3 |
Additional Two-Position Keyed Selector (same operation as described at suffix K3) as second device |
Add suffix B1 |
Audible Alarm as second device, 80 decibel output continuous/intermittant, 120Vac, 60Hz supply |
Add suffix B2 |
Audible Alarm as second device, 80 decibel output continuous/intermittant, 230-240Vac, 50Hz supply |
Add suffix B3 |
Audible Alarm as second device, 80 decibel output continuous/intermittant, 12-24Vac, 50/60Hz supply |
Add suffix TG |
Two Position Maintained Toggle Switch as second device |
Add suffix PL |
Pilot Light as second device, red (standard) (Notes 3, 4) |
Add suffix PF |
Flashing Pilot as optional/second device red (standard), LED only (Notes 2, 3, 4) |
Add suffix PT |
Push to Test Pilot as optional/second device, red (standard) (Notes 2, 3, 4) |
Add suffix YX |
Momentary Round Push Button as second device, red (standard), extended head |
Add suffix DF |
Maintained (Push On-Push Off) Round Push Button as second device, red (standard), flush head |
Add suffix DX |
Maintained (Push On-Push Off) Round Push Button as second device, red (standard), extended head |
Add suffix MP |
Red Maintained ("Pull to Reset") 40mm Mushroom as second device |
Add suffix TW |
Red Maintained ("Turn to Reset") 40mm Mushroom as second device |
Add suffix KR |
Red Maintained Key Release 40mm Mushroom with two keys as second device, key required for reset only |
Add suffix MO |
Red Momentary 40mm Mushroom as second device |
Add suffix GR |
Guard for YF/YX/DF/DX round push button device |
Add suffix GM |
Guard for MP/TW/KR/MO 40mm mushroom device, lockable |
Add suffix NC |
Nonstandard Color on second device (specify) |
Add suffix CI |
Custom Inscription on second device(specify) (Note: Text may be on face of device or in carrier above device ) |
Add suffix CLO |
One Clear Hinged Lockout lid for standard and suffix P4/P5/P6/YF/YX/DF/DX devices lockable/sealable (Note 1) |
Add suffix CLM |
One Clear Hinged Lockout lid for standard and suffix P4/P5/P6/MO/MP/TW/KR/MO
devices, lockable/sealable |
Add suffix DLM |
Same as PILCLM but prevents single mushroom (including momentary) from being released (Note 1) |
Add suffix IL |
Illuminated device, available on selector switches and suffix YF/YX/DF/DX/MP/MO devices (specify) (Note 1) |
Add suffix VT |
Vertical Format of devices instead of (standard) horizontal format |
Add suffix CS |
Custom station with location format/device types other than standard (Note 5) |
Add suffix XD |
Extra Depth enclosure for 9 contact block capacity |
Add suffix SD |
Super Depth enclosure for 15 contact block capacity |
Add suffix MT1 |
All-metal Model, NEMA 1 rated, 6 contact block capacity per device, 1/2-3/4" knockout top/bottom/back |
Add suffix MT4 |
All-metal Model, NEMA 4/12 rated, 6 contact block capacity per device, 1/2-3/4" knockout on back |
Add suffix MS |
All-Stainlessen Steel Model, NEMA 4X/12 rated, 6 contact block capacity per device, 1/2" conduit provision on back |
Add suffix HB |
Female PVC Hub/entrance fitting installed in bottom (standard, specify other) of backbox, for 3/4"PVC conduit |
Add suffix SL |
Specific Main Legend (specify text) |
*NOTE : |
Contact blocks supplied separately ; specify PILNOCB and/or PILNCCB. See Series PIL accessories page 37.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS page 75.Operators are rated NEMA 4/12 (outdoor/indoor use). |
*NOTE 1: |
This option not available with suffix VT. Unlike Suffix CLM, suffix DLM is for use with type MP/MO/TW/KR mushroom devices only and must be lifted in order: for a momentary mushroom device type MO to automatically release/extend, or; to manually release/extend a maintained mushroom device type MP/TW/KR. For use in accordance with applicable codes and requirements. |
*NOTE 2 : |
Suffix IL/PF/PT models are supplied with a 3" deep metal or 4" deep nonmetallic backbox |
*NOTE 3 : |
Includes 24-120V AC/CD protected LED (standard - specify other voltage). Superbright protected LED also available - add addendum SB and specify voltage. Illuminated (suffix IL) versions of suffix YF/YX/DF/DX devices and suffix PL/PT devices are also available with optional incandescent or neon lamp - add the indicated addendum to suffix IL/PL/PT: IC for incandescent or NE for neon (120V lamp standard - specify other voltage). N ote LED only on type PF device and suffix IL versions of mushroom devices. |
*NOTE 4 : |
Illuminated (suffix IL) versions of standard and suffix P2 selector devices are available in lens colors other than (standard) clear. Illuminated (suffix IL) versions of type YF/YX/DF/DX devices and suffix PL/PF/PT devices are available in lens colors other that (standard) red. Add the appropriate addendum to suffix IL/PL/PF/PT as indicated: LR=Red; LC=Clear; LG=Green; LA=Amber; LB=Blue. |
*NOTE 5 : |
Location format (order of arrangement) off devices /features on PCS2PX Series stations is available in standard horizontal or optional vertical (add suffix VT) format. Default location format places the standard (or first-listed) device in the left position (upper position with suffix VT) and the optional device in the right position (lower position with suffix VT).Accurate model numbers should have a first -to-last listing order that corresponds to this default location format. For clarity, a slash (/) is recommended to separate the strings of optional suffixes into two groupings to describe the two devices with features desired. To reverse locations of the primary and optional/second devices, or where both devices are optional, add suffix CS (custom station) and appropriate suffixes to describe custom station desired, using a slash (/) for clarity to separate the two device and feature groupings. ORDERING EXAMPLES: 1) PCS2PXVTSLOC/MPILSB is a surface mount station in vertical format with a main Specific Legend (specify text), standard maintained two position selector switch lettered OPEN CLOSE in upper position, and maintained Illuminated mushroom with (Superbrigh - specify voltage) LED in lower position; 2) PCS2PXOOP2/PLLGCI is a surface mount station with suffix P2 type two position selector switch lettered OFF ON in left position, and pilot light (LED is standard) with (nonstandard) green lens with inscription (specify text) in right position; 3) PCS2PXFN1MAVT/MOGM is a flush mount type NEMA 1 (indoor use) station in vertical format with maintained two position selector switch lettered MANUAL AUTO in upper position, and momentary red mushroom in lower position with guard. |
FEATURES
Nonmetallic NEMA 4X enclosure with stainless steel machine screws (standard)
Bold silk screen legends on white enamel aluminum face plate (standard)
Single device control stations with two/three position Selector Switch: See series PCS2P and PCS3P
Single device control stations with two/three position Keyed Selector: See series PCS2K and PCS3K
Single device control station with choice Push Button, Mushroom or Toggle: See series SWLPB
Single device indicator station with choice of Pilot/Flashing Pilot/Push to Test Pilot or Audible Alarm: See series SWLPL
Two device contol stations with two Maintained/Interlocked Push Buttons: See series MNST and MNSTL
Two device contol stations with choice of Push Button, Mushroom, Pilot/Flashing Pilot/Push to Test Pilot, Toggle Switch, Audible Alarm, Selector Switch and Keyed Selector as otional devices: See series MST1
Dual device control stations: See series MST2 and MST3
Two device control stations with two position Selectro Switch and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS2PX
Two device control stations with three position Selectro Switch and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS3PX
Two device control stations with two position Keyed Selector and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS2KX
Two device control stations with three position Keyed Selector and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS3KX
Standard depth 4X4X2.38 inch surface mount nonmetallic enclosure accepts up to three contact blocks on each device
Extra depth 4X4X4.5 inch surface mount nonmetallic enclosure accepts up to nine contact blocks per device: Add model suffix XD
Super depth 4X4X6.5 inch surface mount nonmetallic enclosure accepts up to fifteen contact blocks per device: Add model suffix SD
All-metal models (surface or flush mount) use a 4X4X3 inch enclosure accepting up to six contact blocks on each device
Economy NEMA 1 flush mount models available with backbox (see below) or for mounting on standard 2-gang wall box
NEMA 1 all-metal models (flush or surface) feature 1/2-3/4" knockout top, bottom & back of use with 1/2" or 3/4" conduit
NEMA 4/12 all-metal models feature 1/2-3/4" knockout on back of box for connection to 1/2" and 3/4" conduit
NEMA 4X all-stainless steel models include 1/2" conduit provision on back of box
ALL-METAL MODELS MEET NYC, CHICAGO AND OTHER SPECIFIC REQUIREMENTS: Add model suffix MT1, MT4 or MS as indicated
Illuminated modelsinclude 24-120V AC/DC protected LED (standard) and can be wired to operate continuously or selectively.Optional incandescent or neon lamps available on some models: Add model suffix IL (Notes 1, 2)
Flush mount models are all-metal as standard and use a 4X4X3 inch enclosure accepting up to sif contact blocks on each device
Restricted operator/station access available: See Series PIL accessories PILCLHCOV1/PILCLHCOVRP/PILCLHCOVRO/PILCLHCOVK (Note 3)
"Alarm Sounds
When Cover is Raised" restricted operator/station access available:
See Series PIL accessory PILCLHCOVA
(Note 3, 4)
"Alarm Sounds
When Cover is Raised" restricted operator access available: See Series
PIL accessory PILCLMA/DLMA
(Note 3, 4)
Restricted single operator access available: Add model suffix RP/CP/RR/CR (for use with round push button operators)
Restricted operator/station access available: Add model sufix GM (for use with mushroom operators)
Key Release maintained mushroom model restricts reset/release access only: Add model suffix KR
Flush mount models sold less enclosure and mount on standard one/two gang wall box (not supplied)
Restricted single operator access available: See Series PIL accessory PILCLO Clear Hinged Lockout lid-for use with round push button, selector switch and keyed selector device (without key inserted) (Note 3)
Restricted single operator access available: See Series PIL accessory PILCLM Clear Hinged Lockout lid-for use with mushroom device and keyed selector device (with and without key inserted) (Note 3)
Restricted single operator access available: See Series PIL accessory PILDLM Clear Hinged Lockout lid-for use with mushroom device only (Note 3)
Contact blocks rated 10AMP continuous up to 600Volts (See Note below)
NOTE 1: Suffix IL models are supplied with a 3" deep metal or 4" deep nonmeatallic backbox.
NOTE 2: LED illumination only on mushroom devices and Flashing Pilot. Optional incandescent or neon lamp available on other devices as-noted. Optional lamps are 120V standard (specify other voltage)
NOTE
3: If no locking/sealing capability
is desired, specify " no Tab"following catalog number (except
PILCLHCOVA).
Lockable/sealable covers and devices for use in accordance with applicable
codes and requirements.
NOTE 4: Must be ordered with (any series) push button station/not available for field installation. Includes pull pin with brass chain and audible alarm with protected On/Off microswitch. Alarm sounds when cover is raised, unless microswitch is "Off" position (maintenance)
