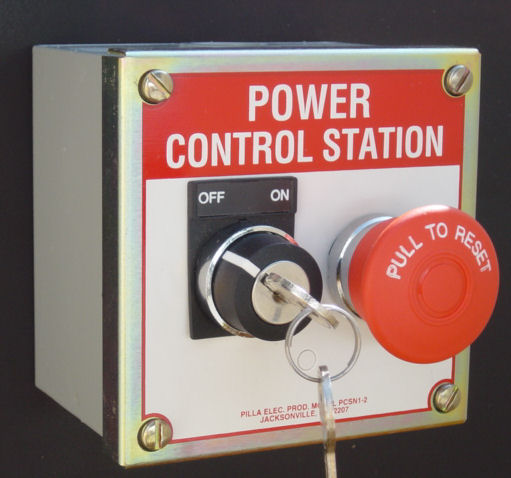

Add suffix K2
|
Maintained
Both positions, key removal Left/Right position (instead of standard keyed
selector operation)
|
|
Add suffix K3
|
Maintained
Left positions, Momentary Right Position, key removal Left position (instead
of standard keyed selector operation)
|
|
Add suffix OO
|
Leftl
Position OFF, Right Position ON
|
|
Add suffix OA
|
Left
Position OFF, Right Position AUTO
|
|
Add suffix SS
|
Left
Position STOP, Right Position START
|
|
Add suffix HL
|
Left
Position HIGH, Right Position LOW
|
|
Add suffix OC
|
Left
Position OPEN, Right Position CLOSE
|
|
Add suffix UD
|
Left
Position UP, Right Position DOWN
|
|
Add suffix MA
|
Left
Position MANUAL, Right Position AUTO
|
|
Add suffix FR
|
Left
Position FORWARD, Right Position REVERSE
|
|
Add suffix CL
|
One or two positions
of selector Custom Lettered (specify) (Note: Text
is lettering carrier above device )
|
|
Add suffix Z1
|
Additional
Two-Position Keyed Selector (standard operation as described at series
heading) as second device
|
|
Add suffix Z2
|
Additional
Two-Position Keyed Selector (same operation as described at suffix K2)
as second device
|
|
Add suffix Z3
|
Additional
Two-Position Keyed Selector (same operation as described at suffix K3)
as second device
|
|
Add suffix B1
|
Audible
Alarm as second device, 80 decibel output continuous/intermittant, 120Vac,
60Hz supply
|
|
Add suffix B2
|
Audible
Alarm as second device, 80 decibel output continuous/intermittant, 230-240Vac,
50Hz supply
|
|
Add suffix B3
|
Audible
Alarm as second device, 80 decibel output continuous/intermittant, 12-24Vac,
50/60Hz supply
|
|
Add suffix TG
|
Two
Position Maintained Toggle Switch as second device
|
|
Add suffix PL
|
Pilot
Light as second device, red (standard) (Notes 3,
4)
|
|
Add suffix PF
|
Flashing
Pilot as optional/second device red (standard), LED only
(Notes 2, 3, 4)
|
|
Add suffix PT
|
Push
to Test Pilot as optional/second device, red (standard)
(Notes 2, 3, 4)
|
|
Add suffix YX
|
Momentary
Round Push Button as second device, red (standard), extended head
|
|
Add suffix DF
|
Maintained
(Push On-Push Off) Round Push Button as second device, red (standard),
flush head
|
|
Add suffix DX
|
Maintained
(Push On-Push Off) Round Push Button as second device, red (standard),
extended head
|
|
Add suffix MP
|
Red
Maintained ("Pull to Reset") 40mm Mushroom as second device
|
|
Add suffix TW
|
Red
Maintained ("Turn to Reset") 40mm Mushroom as second device
|
|
Add suffix KR
|
Red
Maintained Key Release 40mm Mushroom with two keys as second device, key
required for reset only
|
|
Add suffix MO
|
Red
Momentary 40mm Mushroom as second device
|
|
Add suffix GR
|
Guard
for YF/YX/DF/DX round push button device
|
|
Add suffix GM
|
Guard
for MP/TW/KR/MO 40mm mushroom device, lockable
|
|
Add suffix NC
|
Nonstandard
Color on second device (specify)
|
|
Add suffix CI
|
Custom
Inscription on second device(specify) (Note:
Text may be on face of device or in carrier above device )
|
|
Add suffix CLO
|
One Clear Hinged Lockout lid for standard and suffix P4/P5/P6/YF/YX/DF/DX
devices lockable/sealable (Note 1)
|
|
Add suffix CLM
|
One Clear Hinged Lockout lid for standard and suffix P4/P5/P6/MO/MP/TW/KR/MO
devices, lockable/sealable
(Notes 2, 3, 4)
|
|
Add suffix DLM
|
Same
as PILCLM but prevents single mushroom (including momentary) from being
released (Note 1)
|
|
Add suffix IL
|
Illuminated
device, available on selector switches and suffix YF/YX/DF/DX/MP/MO devices
(specify) (Note 1)
|
|
Add suffix VT
|
Vertical
Format of devices instead of (standard) horizontal format
|
|
Add suffix CS
|
Custom
station with location format/device types other than standard
(Note 5)
|
|
Add suffix XD
|
Extra
Depth enclosure for 9 contact block capacity
|
|
Add suffix SD
|
Super
Depth enclosure for 15 contact block capacity
|
|
Add suffix MT1
|
All-metal
Model, NEMA 1 rated, 6 contact block capacity per device, 1/2-3/4"
knockout top/bottom/back
|
|
Add suffix MT4
|
All-metal
Model, NEMA 4/12 rated, 6 contact block capacity per device, 1/2-3/4"
knockout on back
|
|
Add suffix MS
|
All-Stainlessen
Steel Model, NEMA 4X/12 rated, 6 contact block capacity per device, 1/2"
conduit provision on back
|
|
Add suffix HB
|
Female
PVC Hub/entrance fitting installed in bottom (standard, specify other)
of backbox, for 3/4"PVC conduit
|
|
Add suffix SL
|
Specific Main Legend
(specify text)
|
|
*NOTE
:
|
Contact blocks supplied
separately ; specify PILNOCB and/or PILNCCB. See Series PIL accessories
page 37.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS page
75.Operators are rated NEMA 4/12 (outdoor/indoor use).
|
| *NOTE
1: |
This option not available with
suffix VT. Unlike Suffix CLM, suffix DLM is for use with type MP/MO/TW/KR
mushroom devices only and must be lifted in order: for a momentary mushroom
device type MO to automatically release/extend, or; to manually release/extend
a maintained mushroom device type MP/TW/KR. For use in accordance with
applicable codes and requirements.
|
| *NOTE
2 : |
Suffix
IL/PF/PT models are supplied with a 3" deep metal or 4" deep
nonmetallic backbox
|
| *NOTE
3 : |
Includes 24-120V AC/CD protected
LED (standard - specify other voltage). Superbright protected LED also
available - add addendum SB and specify voltage. Illuminated (suffix IL)
versions of suffix YF/YX/DF/DX devices and suffix PL/PT devices are also
available with optional incandescent or neon lamp - add the indicated
addendum to suffix IL/PL/PT: IC for incandescent or NE for neon (120V
lamp standard - specify other voltage). N ote LED only on type PF device
and suffix IL versions of mushroom devices.
|
| *NOTE
4 : |
Illuminated
(suffix IL) versions of standard and suffix P2 selector devices are available
in lens colors other than (standard) clear. Illuminated (suffix IL) versions
of type YF/YX/DF/DX devices and suffix PL/PF/PT devices are available
in lens colors other that (standard) red. Add the appropriate addendum
to suffix IL/PL/PF/PT as indicated: LR=Red; LC=Clear; LG=Green; LA=Amber;
LB=Blue.
|
| *NOTE
5 : |
Location
format (order of arrangement) off devices /features on PCS2PX Series stations
is available in standard horizontal or optional vertical (add suffix VT)
format. Default location format places the standard (or first-listed)
device in the left position (upper position with suffix VT) and the optional
device in the right position (lower position with suffix VT).Accurate
model numbers should have a first -to-last listing order that corresponds
to this default location format. For clarity, a slash (/) is recommended
to separate the strings of optional suffixes into two groupings to describe
the two devices with features desired. To reverse locations of the primary
and optional/second devices, or where both devices are optional, add suffix
CS (custom station) and appropriate suffixes to describe custom station
desired, using a slash (/) for clarity to separate the two device and
feature groupings. ORDERING EXAMPLES: 1) PCS2PXVTSLOC/MPILSB is a surface
mount station in vertical format with a main Specific Legend (specify
text), standard maintained two position selector switch lettered OPEN
CLOSE in upper position, and maintained Illuminated mushroom with (Superbrigh
- specify voltage) LED in lower position; 2) PCS2PXOOP2/PLLGCI is a surface
mount station with suffix P2 type two position selector switch lettered
OFF ON in left position, and pilot light (LED is standard) with (nonstandard)
green lens with inscription (specify text) in right position; 3) PCS2PXFN1MAVT/MOGM
is a flush mount type NEMA 1 (indoor use) station in vertical format with
maintained two position selector switch lettered MANUAL AUTO in upper
position, and momentary red mushroom in lower position with guard.
|
-
Nonmetallic NEMA 4X
enclosure with stainless steel machine screws (standard)
-
Bold silk screen legends
on white enamel aluminum face plate (standard)
-
Single device control
stations with two/three position Selector Switch: See
series PCS2P and PCS3P
-
Single device control
stations with two/three position Keyed Selector: See
series PCS2K and PCS3K
-
Single
device control station with choice Push Button, Mushroom or Toggle: See
series SWLPB
-
Single device indicator
station with choice of Pilot/Flashing Pilot/Push to Test Pilot or Audible
Alarm: See series SWLPL
-
Two device contol
stations with two Maintained/Interlocked Push Buttons: See
series MNST and MNSTL
-
Two
device contol stations with choice of Push Button, Mushroom, Pilot/Flashing
Pilot/Push to Test Pilot, Toggle Switch, Audible Alarm, Selector Switch
and Keyed Selector as otional devices: See series
MST1
-
Dual device control
stations: See series MST2 and MST3
-
Two
device control stations with two position Selectro Switch and choice of
Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible
Alarm as second device: See series PCS2PX
-
Two
device control stations with three position Selectro Switch and choice of
Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible
Alarm as second device: See series PCS3PX
-
Two
device control stations with two position Keyed Selector and choice of Push
Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible
Alarm as second device: See series PCS2KX
-
Two
device control stations with three position Keyed Selector and choice of
Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible
Alarm as second device: See series PCS3KX
-
Standard depth 4X4X2.38
inch surface mount nonmetallic enclosure accepts up to three contact blocks
on each device
-
Extra
depth 4X4X4.5 inch surface mount nonmetallic enclosure accepts up to nine
contact blocks per device: Add model suffix XD
-
Super
depth 4X4X6.5 inch surface mount nonmetallic enclosure accepts up to fifteen
contact blocks per device: Add model suffix SD
-
All-metal models (surface
or flush mount) use a 4X4X3 inch enclosure accepting up to six contact blocks
on each device
-
Economy NEMA 1 flush
mount models available with backbox (see below) or for mounting on standard
2-gang wall box
-
NEMA 1 all-metal models
(flush or surface) feature 1/2-3/4" knockout top, bottom & back
of use with 1/2" or 3/4" conduit
-
NEMA
4/12 all-metal models feature 1/2-3/4" knockout on back of box for
connection to 1/2" and 3/4" conduit
-
NEMA 4X all-stainless
steel models include 1/2" conduit provision on back of box
-
ALL-METAL MODELS MEET
NYC, CHICAGO AND OTHER SPECIFIC REQUIREMENTS: Add model suffix MT1, MT4
or MS as indicated
-
Illuminated modelsinclude
24-120V AC/DC protected LED (standard) and can be wired to operate continuously
or selectively.Optional incandescent or neon lamps available on some models:
Add model suffix IL (Notes 1, 2)
-
Flush mount models
are all-metal as standard and use a 4X4X3 inch enclosure accepting up to
sif contact blocks on each device
-
Restricted
operator/station access available: See Series PIL accessories PILCLHCOV1/PILCLHCOVRP/PILCLHCOVRO/PILCLHCOVK
(Note 3)
-
"Alarm Sounds
When Cover is Raised" restricted operator/station access available:
See Series PIL accessory PILCLHCOVA
(Note 3, 4)
-
"Alarm Sounds
When Cover is Raised" restricted operator access available: See Series
PIL accessory PILCLMA/DLMA
(Note 3, 4)
-
Restricted
single operator access available: Add model suffix
RP/CP/RR/CR (for use with round push button operators)
-
Restricted
operator/station access available: Add model sufix
GM (for use with mushroom operators)
-
Key
Release maintained mushroom model restricts reset/release access only: Add
model suffix KR
-
Flush mount models
sold less enclosure and mount on standard one/two gang wall box (not supplied)
-
Restricted
single operator access available: See Series PIL accessory PILCLO Clear
Hinged Lockout lid-for use with round push button, selector switch and keyed
selector device (without key inserted) (Note 3)
-
Restricted
single operator access available: See Series PIL accessory PILCLM Clear
Hinged Lockout lid-for use with mushroom device and keyed selector device
(with and without key inserted) (Note 3)
-
Restricted
single operator access available: See Series PIL accessory PILDLM Clear
Hinged Lockout lid-for use with mushroom device only
(Note 3)
-
Contact blocks rated
10AMP continuous up to 600Volts (See Note below)
- NOTE: Contact
Blocks supplied separately; specify accessories PILNOCB and/or PILNCCB. See
Series PIL accessories page 37.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS
page 75. Operators are rated Nema 4/12 (outdoor/indoor use).
-
NOTE
1: Suffix IL models are supplied with
a 3" deep metal or 4" deep nonmeatallic backbox.
-
NOTE
2: LED illumination only on mushroom
devices and Flashing Pilot. Optional incandescent or neon lamp available
on other devices as-noted. Optional lamps are 120V standard (specify other
voltage)
-
NOTE
3: If no locking/sealing capability
is desired, specify " no Tab"following catalog number (except
PILCLHCOVA).
Lockable/sealable covers and devices for use in accordance with applicable
codes and requirements.
-
NOTE
4: Must be ordered with (any series)
push button station/not available for field installation. Includes pull
pin with brass chain and audible alarm with protected On/Off microswitch.
Alarm sounds when cover is raised, unless microswitch is "Off"
position (maintenance)
