POWER CONTROL STATION -THREE-POSITION
KEYED SELECTOR
See Series PIL accessories preceeding page. |

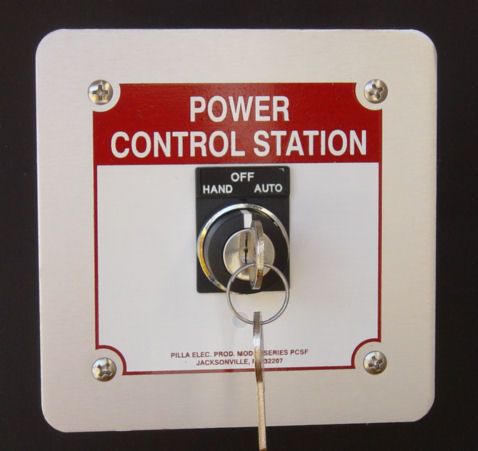

![]() PCS3KFWB |
|
Blow up |Normal |Reduce ![]() Blow up |Normal |Reduce |
Description |
Flush mount |
NEMA 1 |
Backbox not supplied |
for use with standard 4X4" wallbox |
contact block capacity 3 per station |
OPTIONS AVAILABLE |
|
Add suffix K5 |
Maintained all positions, key removal Left/Right (Note 2) |
Add suffix K6 |
Maintained all positions, key removal Left (Note 2) |
Add suffix K7 |
Maintained all positions, key removal all positions (Note 2) |
Add suffix K8 |
Maintained Center position, Momentary Left/Right positions, key removal Center (Note 2) |
Add suffix K9 |
Maintained Righ/Center positions, Momentary Left position, key removal Right (Note 2) |
Add suffix K10 |
Maintained Left/Center positions, Momentary Right position, key removal Center (Note 2) |
Add suffix K11 |
Maintained Left/Center positions, Momentary Right position, key removal Left (Note 2) |
Add suffix HOA |
Left Position HAND, Center OFF, Right Position AUTO |
Add suffix MOA |
Left Position MANUAL, Center OFF, Right Position AUTO |
Add suffix OOA |
Left Position ON, Center OFF, Right Position AUTO |
Add suffix UOD |
Left Position UP, Center OFF, Right Position DOWN |
Add suffix FOR |
Left Position FORWARD, Center OFF, Right Position REVERSE |
Add suffix CL |
One, two or three positions of keyed selector Custom Lettered (specify) (Note 1) |
Add suffix CLO |
One Clear Hinged Lockout lid for standard or suffix K2/K3 devices, lockable/sealable (Note 3) |
Add suffix CLM |
One Clear Hinged Lockout lid for standard or suffix K2/K3 devices, lockable/sealable (Note 3) |
Add suffix XD |
Extra Depth enclosure for 9 contact block capacity |
Add suffix SD |
Super Depth enclosure for 15 contact block capacity |
Add suffix MT1 |
All-metal Model, NEMA 1 rated, 6 contact block capacity per device, 1/2-3/4" knockout top/bottom/back |
Add suffix MT4 |
All-metal Model, NEMA 4/12 rated, 6 contact block capacity per device, 1/2-3/4" knockout on back |
Add suffix MS |
All-Stainlessen Steel Model, NEMA 4X/12 rated, 6 contact block capacity per device, 1/2" conduit provision on back |
Add suffix HB |
Female PVC Hub/entrance fitting installed in bottom (standard, specify other) of backbox, for 3/4"PVC conduit |
Add suffix SL |
Specific Main Legend (specify text) |
*NOTE : |
Contact blocks supplied separately ; specify PILNOCB and/or PILNCCB. See Series PIL accessories page 37.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS page 75.Operators are rated NEMA 4/12 (outdoor/indoor use). |
*NOTE 1: |
Texti n inscription/lettering carrier above device. |
*NOTE 2 : |
Includes two keys. Not available with illumination. |
*NOTE 3 : |
Suffix CLO is compatible with standard and suffix K5-K11 devices without key insrted only. SuffixCLM is compatable with standard and suffix K5-K11 devices with and without key inserted. For usse in accordance with applicable codes and requirements. |
FEATURES
Nonmetallic NEMA 4X enclosure with stainless steel machine screws (standard)
Bold silk screen legends on white enamel aluminum face plate (standard)
Single device control stations with two/three position Selector Switch: See series PCS2P and PCS3P
Single device control stations with two/three position Keyed Selector: See series PCS2K and PCS3K
Single device control station with choice Push Button, Mushroom or Toggle: See series SWLPB
Single device indicator station with choice of Pilot/Flashing Pilot/Push to Test Pilot or Audible Alarm: See series SWLPL
Two device contol stations with two Maintained/Interlocked Push Buttons: See series MNST and MNSTL
Two device contol stations with choice of Push Button, Mushroom, Pilot/Flashing Pilot/Push to Test Pilot, Toggle Switch, Audible Alarm, Selector Switch and Keyed Selector as otional devices: See series MST1
Dual device control stations: See series MST2 and MST3
Two device control stations with two position Selectro Switch and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS2PX
Two device control stations with three position Selectro Switch and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS3PX
Two device control stations with two position Keyed Selector and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS2KX
Two device control stations with three position Keyed Selector and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS3KX
Standard depth 4X4X2.38 inch surface mount nonmetallic enclosure accepts up to three contact blocks on each device
Extra depth 4X4X4.5 inch surface mount nonmetallic enclosure accepts up to nine contact blocks per device: Add model suffix XD
Super depth 4X4X6.5 inch surface mount nonmetallic enclosure accepts up to fifteen contact blocks per device: Add model suffix SD
All-metal models (surface or flush mount) use a 4X4X3 inch enclosure accepting up to six contact blocks on each device
Economy NEMA 1 flush mount models available with backbox (see below) or for mounting on standard 2-gang wall box
NEMA 1 all-metal models (flush or surface) feature 1/2-3/4" knockout top, bottom & back of use with 1/2" or 3/4" conduit
NEMA 4/12 all-metal models feature 1/2-3/4" knockout on back of box for connection to 1/2" and 3/4" conduit
NEMA 4X all-stainless steel models include 1/2" conduit provision on back of box
ALL-METAL MODELS MEET NYC, CHICAGO AND OTHER SPECIFIC REQUIREMENTS: Add model suffix MT1, MT4 or MS as indicated
Illuminated modelsinclude 24-120V AC/DC protected LED (standard) and can be wired to operate continuously or selectively.Optional incandescent or neon lamps available on some models: Add model suffix IL (Notes 1, 2)
Flush mount models are all-metal as standard and use a 4X4X3 inch enclosure accepting up to sif contact blocks on each device
Restricted operator/station access available: See Series PIL accessories PILCLHCOV1/PILCLHCOVRP/PILCLHCOVRO/PILCLHCOVK (Note 3)
"Alarm Sounds
When Cover is Raised" restricted operator/station access available:
See Series PIL accessory PILCLHCOVA
(Note 3, 4)
"Alarm Sounds
When Cover is Raised" restricted operator access available: See Series
PIL accessory PILCLMA/DLMA
(Note 3, 4)
Restricted single operator access available: Add model suffix RP/CP/RR/CR (for use with round push button operators)
Restricted operator/station access available: Add model sufix GM (for use with mushroom operators)
Key Release maintained mushroom model restricts reset/release access only: Add model suffix KR
Flush mount models sold less enclosure and mount on standard one/two gang wall box (not supplied)
Restricted single operator access available: See Series PIL accessory PILCLO Clear Hinged Lockout lid-for use with round push button, selector switch and keyed selector device (without key inserted) (Note 3)
Restricted single operator access available: See Series PIL accessory PILCLM Clear Hinged Lockout lid-for use with mushroom device and keyed selector device (with and without key inserted) (Note 3)
Restricted single operator access available: See Series PIL accessory PILDLM Clear Hinged Lockout lid-for use with mushroom device only (Note 3)
Contact blocks rated 10AMP continuous up to 600Volts (See Note below)
NOTE 1: Suffix IL models are supplied with a 3" deep metal or 4" deep nonmeatallic backbox.
NOTE 2: LED illumination only on mushroom devices and Flashing Pilot. Optional incandescent or neon lamp available on other devices as-noted. Optional lamps are 120V standard (specify other voltage)
NOTE
3: If no locking/sealing capability
is desired, specify " no Tab"following catalog number (except
PILCLHCOVA).
Lockable/sealable covers and devices for use in accordance with applicable
codes and requirements.
NOTE 4: Must be ordered with (any series) push button station/not available for field installation. Includes pull pin with brass chain and audible alarm with protected On/Off microswitch. Alarm sounds when cover is raised, unless microswitch is "Off" position (maintenance)
