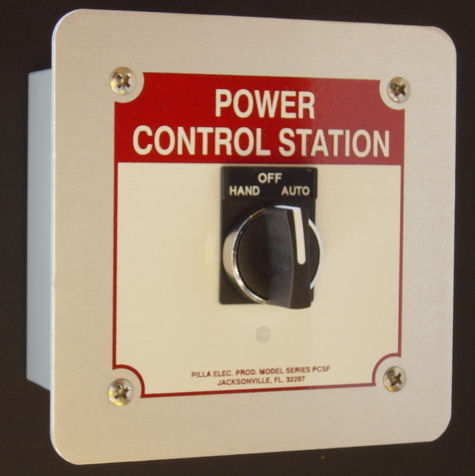

POWER CONTROL STATIONS SERIES PCS3PFN1 POWER CONTROL STATION -THREE-POSITION SELECTOR SWITCH (Short Black Lever Only), Maintained All Positions (Standard), Specific Legends available, UL LISTED Back to List of series and information page See Series PIL accessories preceeding page.

PCS3PFN1

Actual: Blow up |Normal |Reduce Blow up |Normal |Reduce Drawing:Coming soon Blow up |Normal |Reduce Blow up |Normal |Reduce

FEATURES

• Nonmetallic NEMA 4X enclosure with stainless steel machine screws (standard)

• Bold silk screen legends on white enamel aluminum face plate (standard)

• Single device control stations with two/three position Selector Switch: See series PCS2P and PCS3P

• Single device control stations with two/three position Keyed Selector: See series PCS2K and PCS3K

• Single device control station with choice Push Button, Mushroom or Toggle: See series SWLPB

• Single device indicator station with choice of Pilot/Flashing Pilot/Push to Test Pilot or Audible Alarm: See series SWLPL

• Two device contol stations with two Maintained/Interlocked Push Buttons: See series MNST and MNSTL

• Two device contol stations with choice of Push Button, Mushroom, Pilot/Flashing Pilot/Push to Test Pilot, Toggle Switch, Audible Alarm, Selector Switch and Keyed Selector as otional devices: See series MST1

• Dual device control stations: See series MST2 and MST3

• Two device control stations with two position Selectro Switch and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS2PX

• Two device control stations with three position Selectro Switch and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS3PX

• Two device control stations with two position Keyed Selector and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS2KX

• Two device control stations with three position Keyed Selector and choice of Push Button/Mushroom/Pilot/Flashing Pilot/Push to Test Pilot/Toggle Switch/Audible Alarm as second device: See series PCS3KX

• Standard depth 4X4X2.38 inch surface mount nonmetallic enclosure accepts up to three contact blocks on each device

• Extra depth 4X4X4.5 inch surface mount nonmetallic enclosure accepts up to nine contact blocks per device: Add model suffix XD

• Super depth 4X4X6.5 inch surface mount nonmetallic enclosure accepts up to fifteen contact blocks per device: Add model suffix SD

• All-metal models (surface or flush mount) use a 4X4X3 inch enclosure accepting up to six contact blocks on each device

• Economy NEMA 1 flush mount models available with backbox (see below) or for mounting on standard 2-gang wall box

• NEMA 1 all-metal models (flush or surface) feature 1/2-3/4" knockout top, bottom & back of use with 1/2" or 3/4" conduit

• NEMA 4/12 all-metal models feature 1/2-3/4" knockout on back of box for connection to 1/2" and 3/4" conduit

• NEMA 4X all-stainless steel models include 1/2" conduit provision on back of box

• ALL-METAL MODELS MEET NYC, CHICAGO AND OTHER SPECIFIC REQUIREMENTS: Add model suffix MT1, MT4 or MS as indicated

• Illuminated modelsinclude 24-120V AC/DC protected LED (standard) and can be wired to operate continuously or selectively.Optional incandescent or neon lamps available on some models: Add model suffix IL (Notes 1, 2)

• Flush mount models are all-metal as standard and use a 4X4X3 inch enclosure accepting up to sif contact blocks on each device

• Restricted operator/station access available: See Series PIL accessories PILCLHCOV1/PILCLHCOVRP/PILCLHCOVRO/PILCLHCOVK (Note 3)

• "Alarm Sounds When Cover is Raised" restricted operator/station access available: See Series PIL accessory PILCLHCOVA
  (Note 3, 4)

• "Alarm Sounds When Cover is Raised" restricted operator access available: See Series PIL accessory PILCLMA/DLMA
  (Note 3, 4)

• Restricted single operator access available: Add model suffix RP/CP/RR/CR (for use with round push button operators)

• Restricted operator/station access available: Add model sufix GM (for use with mushroom operators)

• Key Release maintained mushroom model restricts reset/release access only: Add model suffix KR

• Flush mount models sold less enclosure and mount on standard one/two gang wall box (not supplied)

• Restricted single operator access available: See Series PIL accessory PILCLO Clear Hinged Lockout lid-for use with round push button, selector switch and keyed selector device (without key inserted) (Note 3)

• Restricted single operator access available: See Series PIL accessory PILCLM Clear Hinged Lockout lid-for use with mushroom device and keyed selector device (with and without key inserted) (Note 3)

• Restricted single operator access available: See Series PIL accessory PILDLM Clear Hinged Lockout lid-for use with mushroom device only (Note 3)

• Contact blocks rated 10AMP continuous up to 600Volts (See Note below)

• NOTE: Contact Blocks supplied separately; specify accessories PILNOCB and/or PILNCCB. See Series PIL accessories page 37.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS page 75. Operators are rated Nema 4/12 (outdoor/indoor use).

• NOTE 1: Suffix IL models are supplied with a 3" deep metal or 4" deep nonmeatallic backbox.

• NOTE 2: LED illumination only on mushroom devices and Flashing Pilot. Optional incandescent or neon lamp available on other devices as-noted. Optional lamps are 120V standard (specify other voltage)

• NOTE 3: If no locking/sealing capability is desired, specify " no Tab"following catalog number (except PILCLHCOVA).
  Lockable/sealable covers and devices for use in accordance with applicable codes and requirements.

• NOTE 4: Must be ordered with (any series) push button station/not available for field installation. Includes pull pin with brass chain and audible alarm with protected On/Off microswitch. Alarm sounds when cover is raised, unless microswitch is "Off" position (maintenance)
