PCS2KFN1


POWER CONTROL STATIONS
SERIES PCS2KFN1

POWER CONTROL STATION -TWO-POSITION KEYED SELECTOR
Maintained Both Positions/Key Removal Left (Standard), Includes Two Keyes,
Specific Legends available, UL LISTED

Back to List of series and information page

See Series PIL accessories preceeding page.


PCS2KFN1

PCS2KFN1

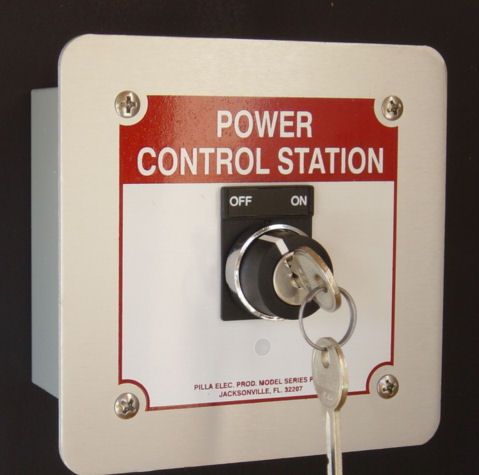

Actual:

Blow up |Normal |Reduce
Blow up |Normal |Reduce


Drawing:Coming soon

Blow up |Normal |Reduce
Blow up |Normal |Reduce


Description

Flush mount

NEMA 1

Metal backbox

1/2-3/4" knockout top, bottom & back

contact block capacity 6 per station


OPTIONS
AVAILABLE

TO ORDER: The above Standard Models may be ordered as-is or may include optional features listed below. Add the desired optional suffix(s) to the indicated Standard Model number chosen from above

Add suffix K2

Maintained both position, key removal Left/Right (Note 2)

Add suffix K3

Maintained Left position, Momentary Right Position, key removal Left (Note 2)

Add suffix OO

Left Position OFF, Right Position ON

Add suffix OA

Left Position OFF, Right Position AUTO

Add suffix SS

Left Position STOP, Right Position START

Add suffix HL

Left Position HIGH, Right Position LOW

Add suffix OC

Left Position OPEND, Right Position CLOSE

Add suffix UD

Left Position UP, Right Position DOWN

Add suffix MA

Left Position MANUAL, Right Position AUTO

Add suffix HA

Left Position HAND, Right Position AUTO

Add suffix FR

Left Position FORWARD, Right Position REVERSE

Add suffix CL

One or two position of keyed selector Custom Lettered (specify) (Note 1)

Add suffix CLO

One Clear Hinged Lockout lid with standard and suffix K2/K3 devices, lockable/sealable (Note 3)

Add suffix CLM

One Clear Hinged Lockout lid with standard and suffix K2/K3 devices, lockable/sealable (Note 3)

Add suffix XD

Extra Depth enclosure for 9 contact block capacity

Add suffix SD

Super Depth enclosure for 15 contact block capacity

Add suffix MT1

All-metal Model, NEMA 1 rated, 6 contact block capacity per device, 1/2-3/4" knockout top/bottom/back

Add suffix MT4

All-metal Model, NEMA 4/12 rated, 6 contact block capacity per device, 1/2-3/4" knockout on back

Add suffix MS

All-Stainlessen Steel Model, NEMA 4X/12 rated, 6 contact block capacity per device, 1/2" conduit provision on back

Add suffix HB

Female PVC Hub/entrance fitting installed in bottom (standard, specify other) of backbox, for 3/4"PVC conduit

Add suffix SL

Specific Main Legend (specify text)

*NOTE :

Contact blocks supplied separately ; specify PILNOCB and/or PILNCCB. See Series PIL accessories page 37.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS page 75.Operators are rated NEMA 4/12 (outdoor/indoor use).

*NOTE 1:

Text in inscription/lettering carrier above device

*NOTE 2 :

Includes two keyes. Not available with illumination

*NOTE 3 :

Suffix CLO is compatible with standard and suffix K2/K3 devices without key inserted only. Suffix CLM is compatibile with standard and suffix K2/K3 devices without key inserted. For use with accordance with applicable codes and requirements.
