PCS2PFWB


POWER CONTROL STATIONS
SERIES PCS2P

POWER CONTROL STATION -TWO-POSITION SELECTOR SWITCH
(Short Black Lever Only), Maintained Both Positions (Standard), Specific Legends available, UL LISTED

Back to List of series and information page

See Series PIL accessories preceeding page.

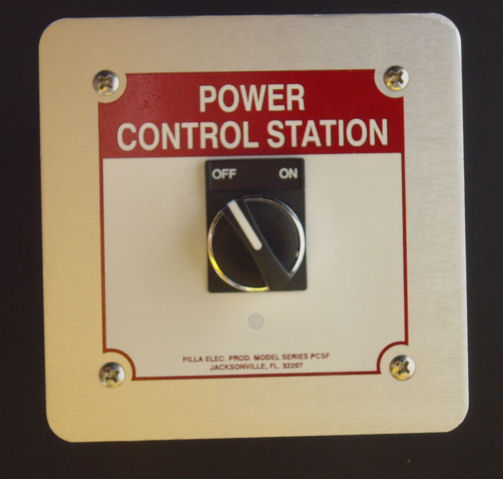

PCS2PFWB

PCS2PFWB
Actual:

Blow up |Normal |Reduce
Blow up |Normal |Reduce


Drawing:Coming soon

Blow up |Normal |Reduce
Blow up |Normal |Reduce


Description

Flush mount

NEMA 1

Backbox not supplied

for use with standard 4X4" wallbox

contact block capacity 3 per device


OPTIONS
AVAILABLE

TO ORDER: The above Standard Models may be ordered as-is or may include optional features listed below. Add the desired optional suffix(s) to the indicated Standard Model number chosen from above

Add suffix P2

Maintained Left position, Momentary Right position

Add suffix OO

Left Position ON, Right Position OFF

Add suffix OA

Left POsition OFF, Right Position AUTO

Add suffix SS

Left Position STOP, Right Position START

Add suffix HL

Left Position HIGH, Right Position LOW

Add suffix OC

Left Position OPEN, Right Position CLOSE

Add suffix UD

Left Position UP, Right Position DOWN

Add suffix MA

Left Position MANUAL, Right Position AUTO

Add suffix HA

Left Position HAND, Right Position AUTO

Add suffix FR

Left Position FORWARD, Right Position REVERSE

Add suffix CL

One or two position of selector Custom Lettered (specify) (Note 4)

Add suffix IL

Illuminated selector switch device (Notes 1, 2)

Add suffix CLO

One Clear Hinged Lockout lid for standard or suffix P2 device, lockable/sealable (Note 3)

Add suffix XD

Extra Depth enclosure for 9 contact block capacity

Add suffix SD

Super Depth enclosure for 15 contact block capacity

Add suffix MT1

All-metal Model, NEMA 1 rated, 2 contact block capacity per device, 1/2-3/4" knockout top/bottom/back

Add suffix MT4

All-metal Model, NEMA 4/12 rated, 2 contact block capacity per device, 1/2-3/4" knockout on back

Add suffix MS

All-Stainlessen Steel Model, NEMA 4X/12 rated, 6 contact block capacity per device, 1/2" conduit provision on back

Add suffix HB

Female PVC Hub/entrance fitting installed in bottom (standard, specify other) of backbox, for 3/4"PVC conduit

Add suffix SL

Specific Main Legend (specify text)

*NOTE :

Contact blocks supplied separately ; specify PILNOCB and/or PILNCCB. See Series PIL accessories page 37.For electrical ratings, see CONTACT BLOCK CHARACTERISTICS page 75.Operators are rated NEMA 4/12 (outdoor/indoor use).

*NOTE 1:

Includes 23-120V AC/DC protected LED (standard). Superbrght protected LED also available (add suffix SB - specify voltage)

*NOTE 2 :

Suffix IL models are supplied with a 3" deep metal or 4" deep nonmetallic backbox. Illuminated (suffix IL)version of standard and suffix P2 devices are available in lens color other than (standard) clear. Add the appropriate addendum to suffix IL as indicated: LR = Red; LG = Green; LB = Blue.

*NOTE 3 :

For use in accordance with applicable codes and requirements.

*NOTE 4 :

Textin inscription/lettering carrier above device.

FEATURES
